Scatola movimento centrale d'artigano | Tretlagergehaeuse - Rahmenbau-Liebe Im Detail (Handwerkskunst) | elaborate bottom bracket shells

[Avi.1990]

Villa
Amleto Villa
Bologna, Emilia-Romagna

Cicli Villa
since 1928 - 80s


Palmares: Marco Cimatti victorious at the 1932 Olympic Games in Los Angeles, on a villa, team pursuit discipline (track, 4000m, four-man team)

by Gianni Rivola - they say and I see / recognize


no of the bottom bracket shell from beneath

wuerde der Kurbel wohl besser stehen, wie den Schalthebeln. Kenner wissen Bescheid!
Mega Aufbau ufff



[Avi.1990]

Tschö mit Ö!
Die Haltung



[Avi.1990]

Cicli Montanari

Bologna, Emilia-Romagna

by Chiesa


beautiful bottom bracket shell cut-out

artistic & thoughtful placing, of the in the year 1959, introduced by Campagnolo, rear derailleur shifting cable guide braze-on, #663 - similar as master framebuilder Albert Eisentraut used to do it

frame integrated pump peg

no fork crown reinforcements - instead two bore holes



[Avi.1990]

Cicli Montanari

Montanari Special
Bologna, Emilia-Romagna
wrong fork, belongs to 2tecnotelai Bologna, of Eugenio Rampinelli (director was Orazio Grenzi) - Eugenio owned Cobra, Roto and R.E.G. too.



by Umberto Chiesa
maybe also his alumni Gianni Rivola...

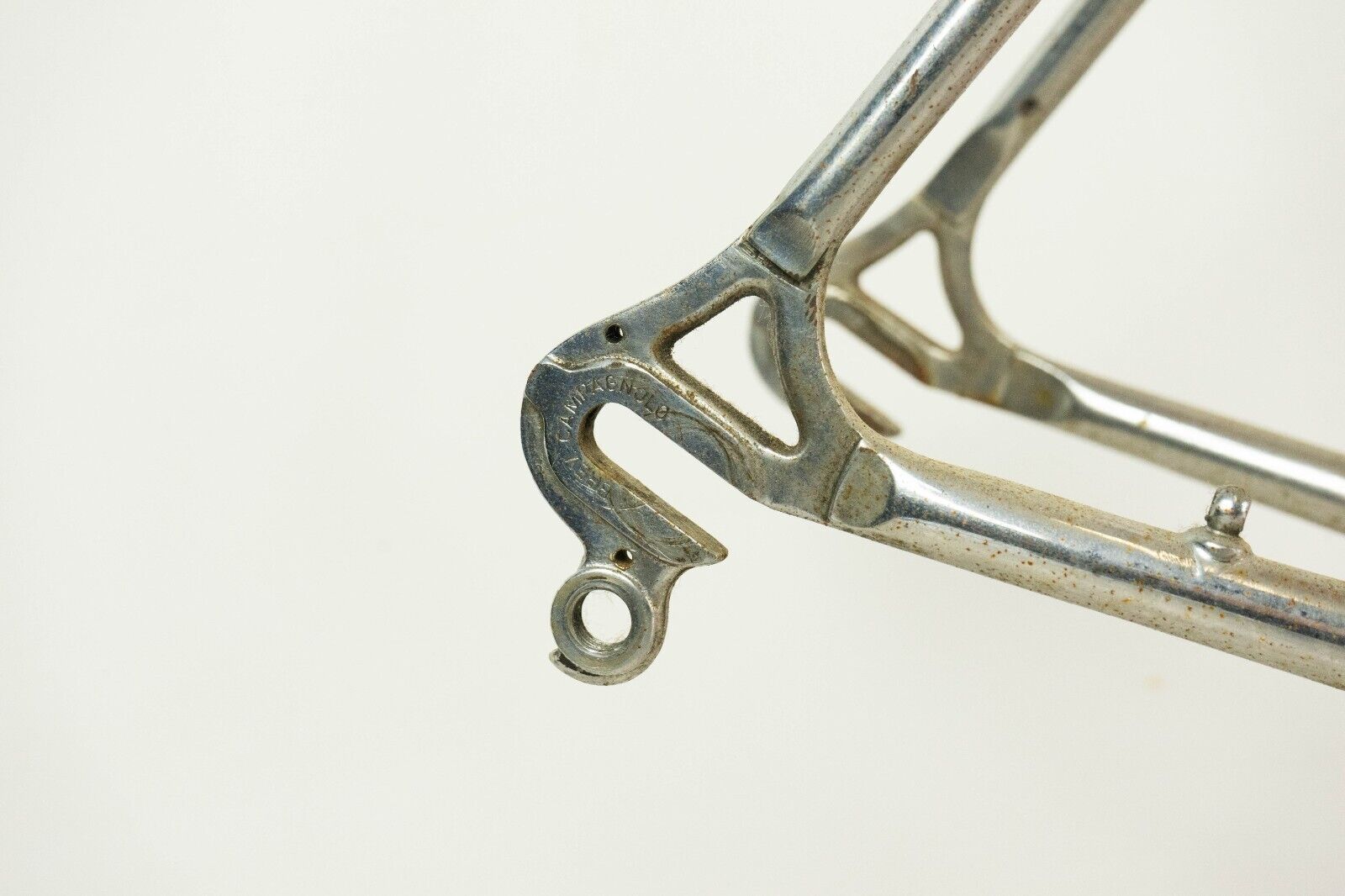

Zeus dropouts...



[Avi.1990]

Branca
from Magnago, MI (Milano), Lombardia
Felice Branca mechanic to the team Filotex and Franco Bitossi "cuore matto - crazy heart" (due to a cardiac arrhythmia which often compelled him to stop midway in a stage) (171 wins in 16 years)
missed the near victory at the World Championship in Gap, France, where he was beaten by only a few meters by his teammate Marino Basso.


Branca had frames made (in chornological order) by Volta & his brother in law, Giuseppe Pino Pelà, Losa and maybe someoneelse even later

by Losa

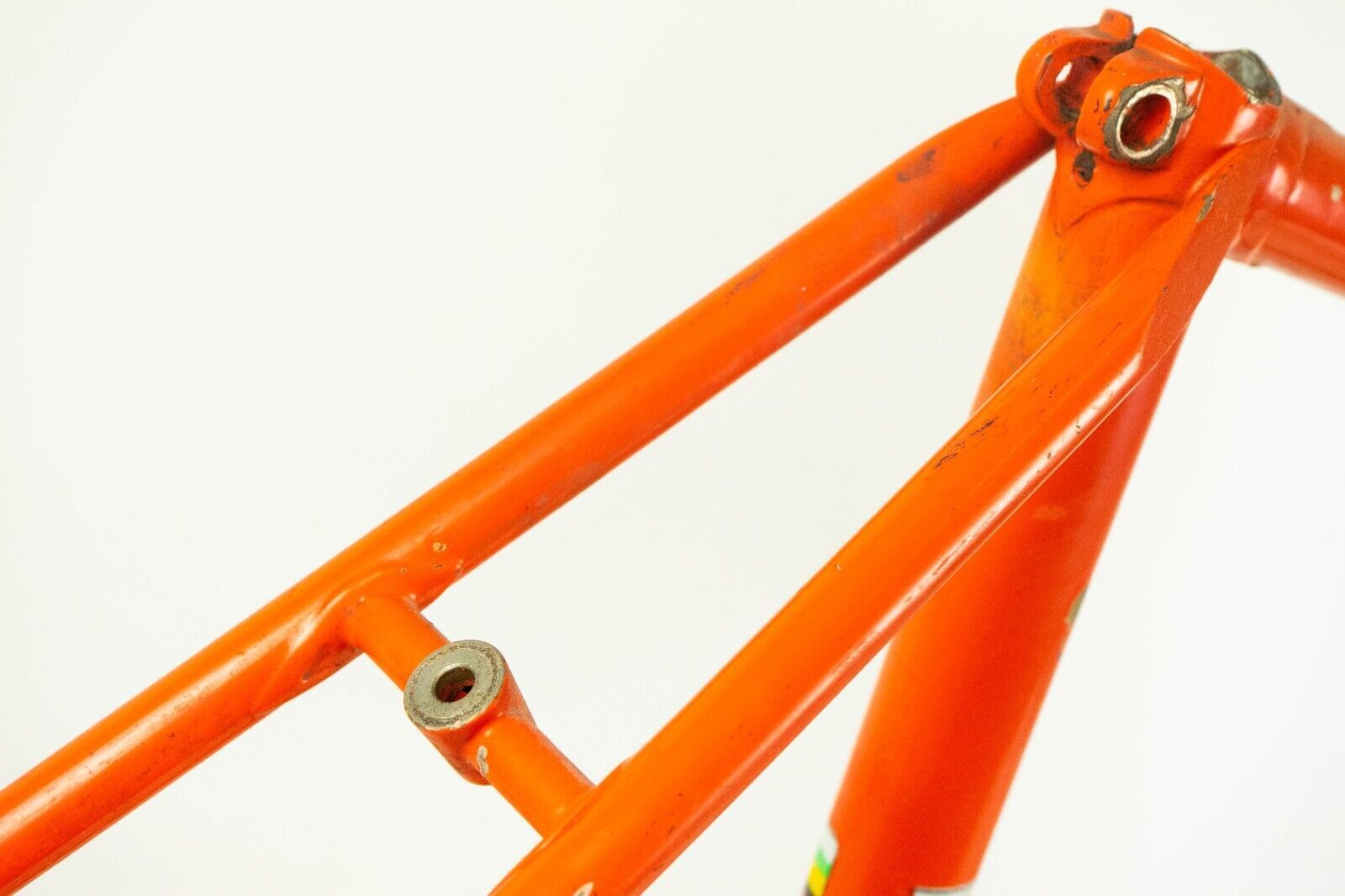

(pointed seatstay caps, bottom bracket shell bore holes towards the chainstays, direction/placing of ventilation bore hole on chainstays bridge, attachment of the dropouts, how the right chainstay ist flattened on the inner side towards the dropout)



[Avi.1990]



[Avi.1990]

Brazzo
Losa



[Avi.1990]

Brazzo
12
Losa

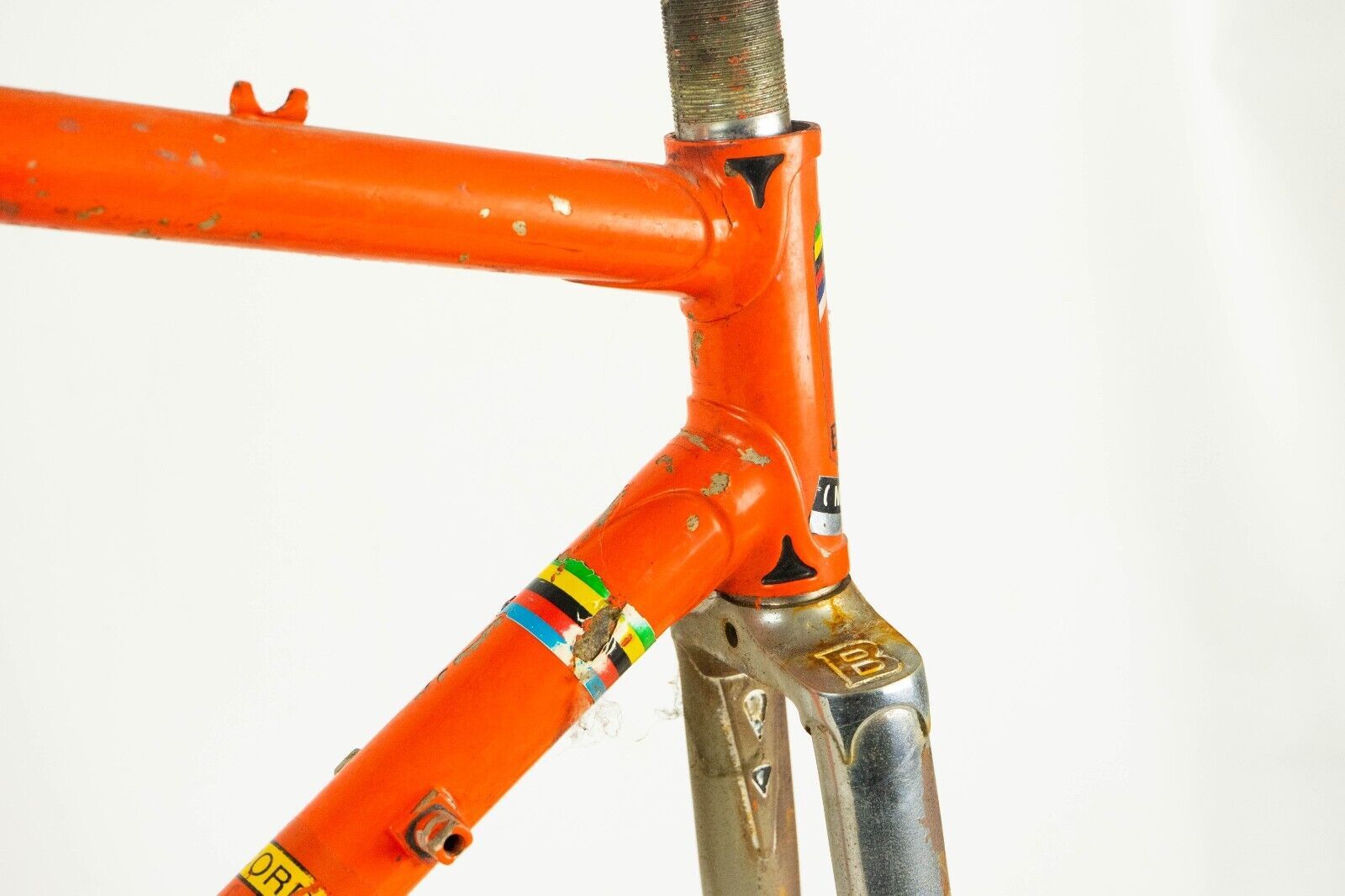

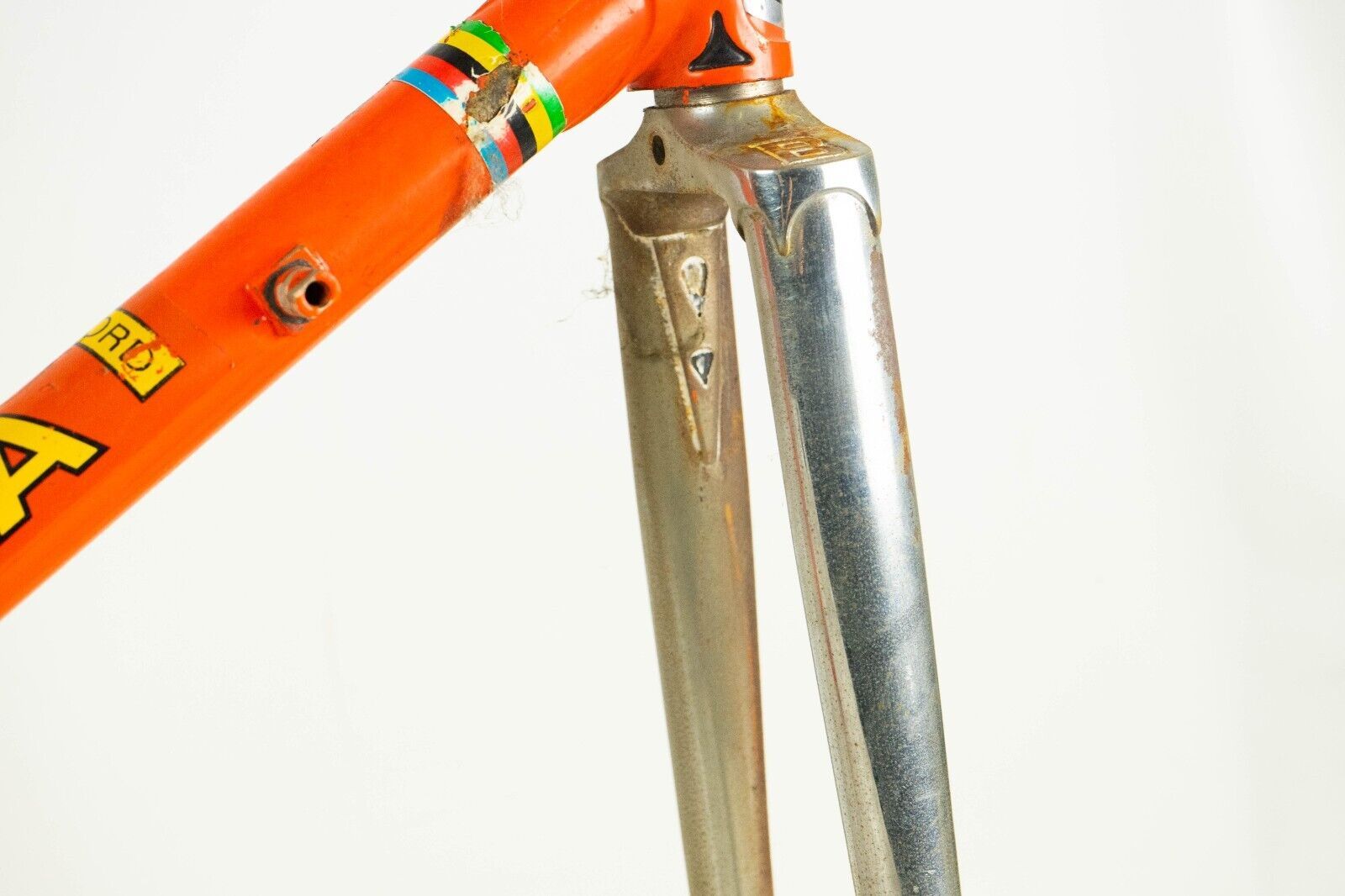

bottom bracket shell bore holes towards the chainstays, direction/placing of ventilation bore hole on chainstays bridge, attachment of the dropouts, how the right chainstay ist flattened on the inner side towards the dropout as the left one too!!!, cut-outs on the fork crown reinforcement tangs , lower headtube cut-out "V")

Bruno Brazzo, Certosa di Pavia (PV, Pavia), Lombardia
since 1962

Prugnat 62/D lugs/Muffen/raccordi-congiunzioni



[Avi.1990]



[Avi.1990]

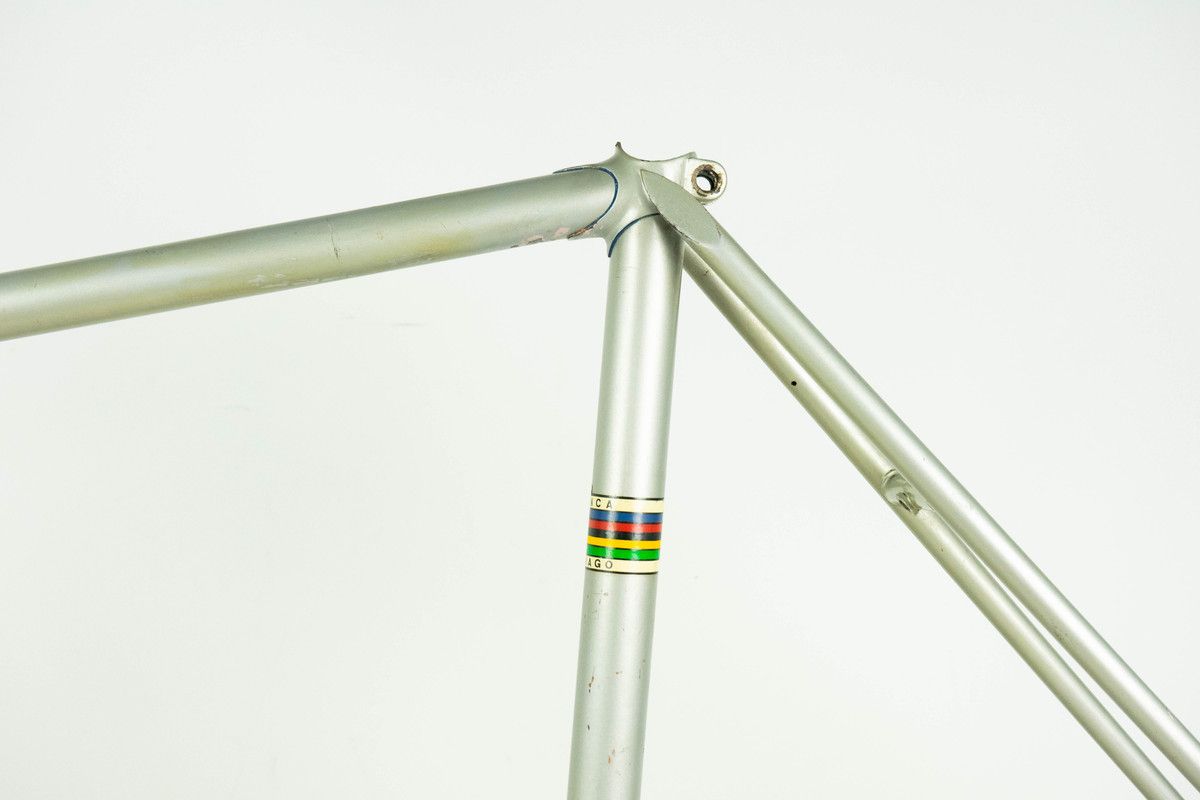

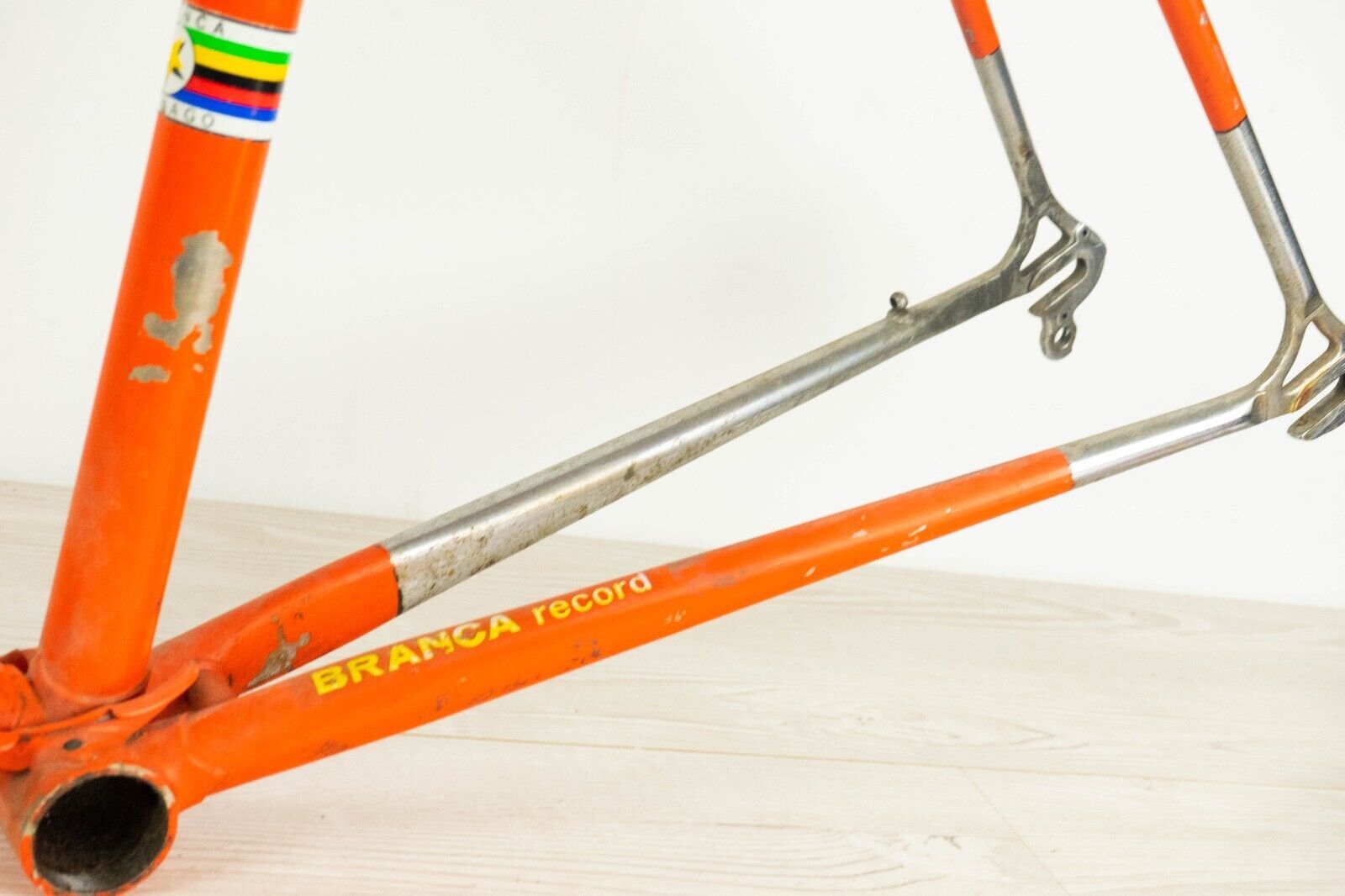

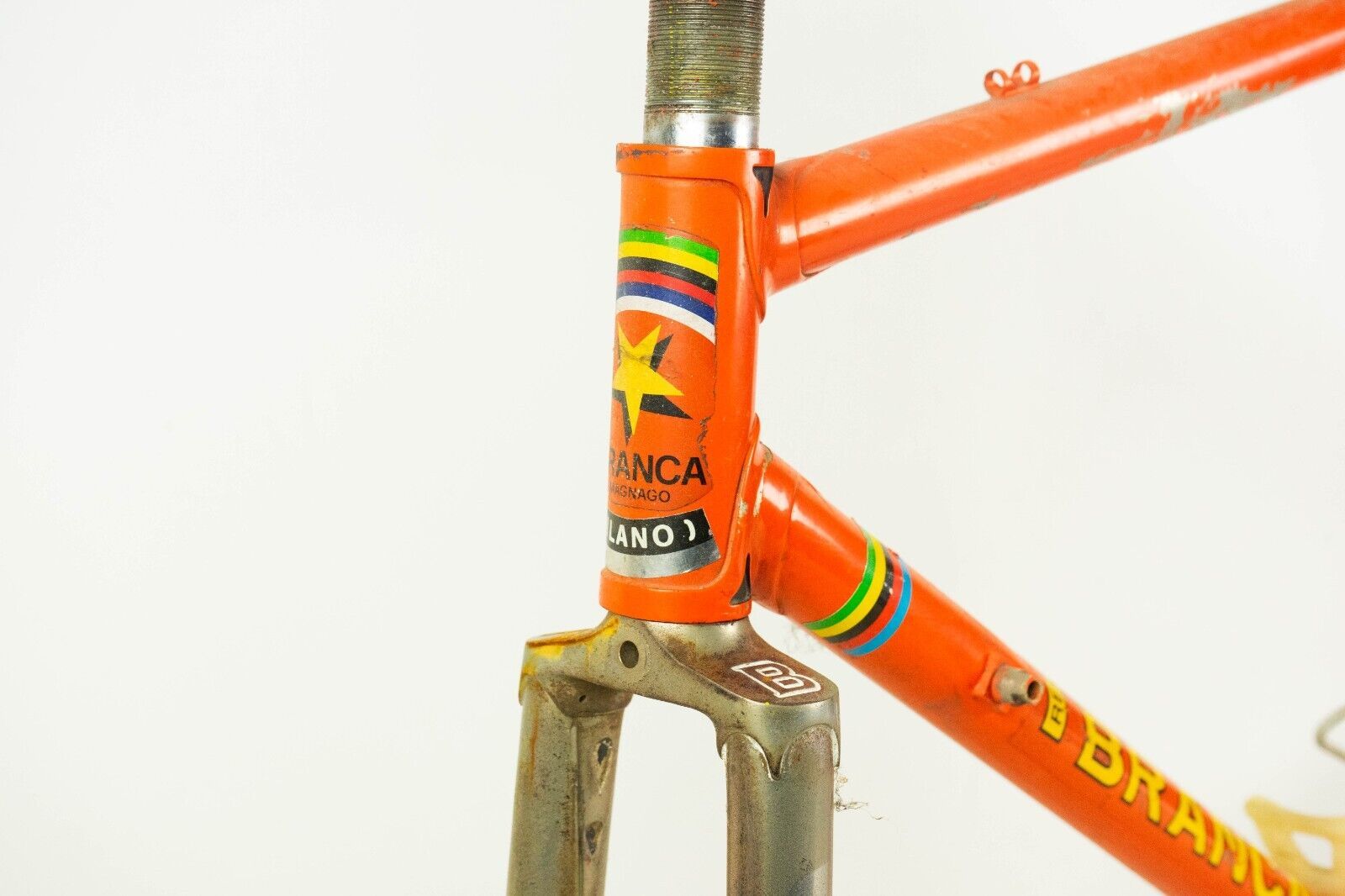

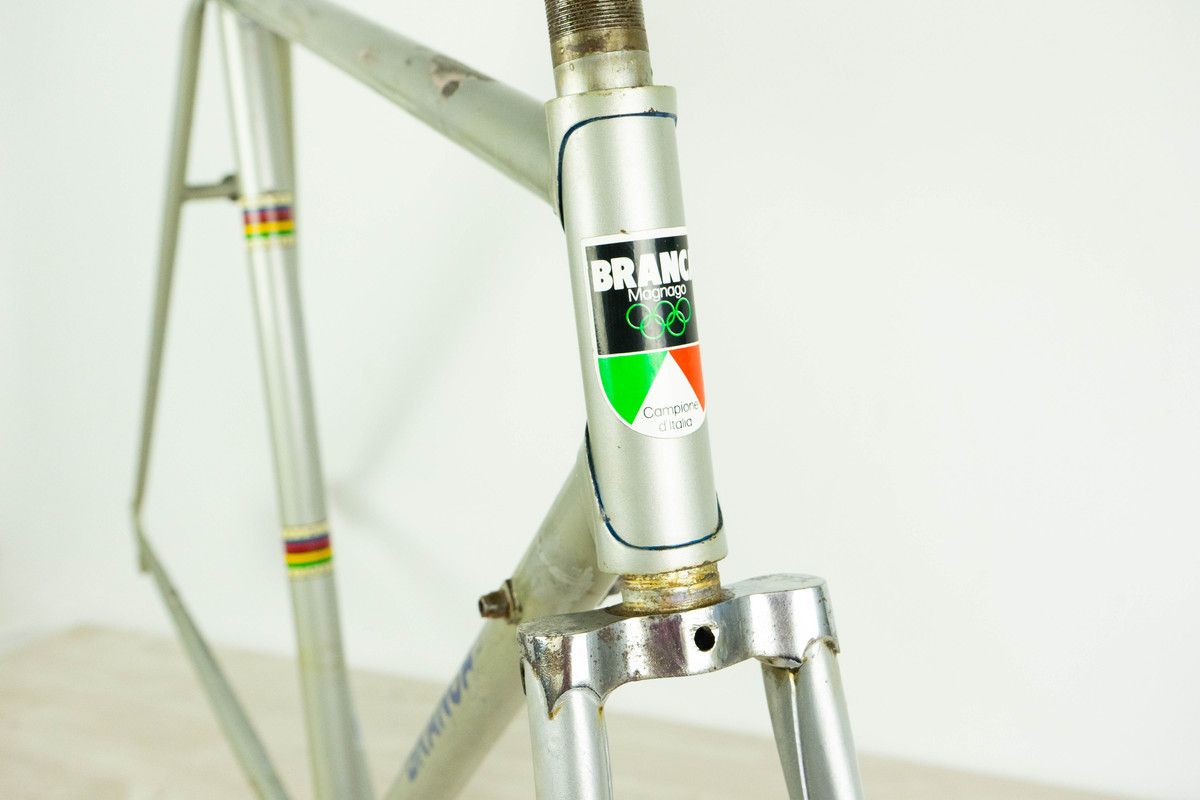

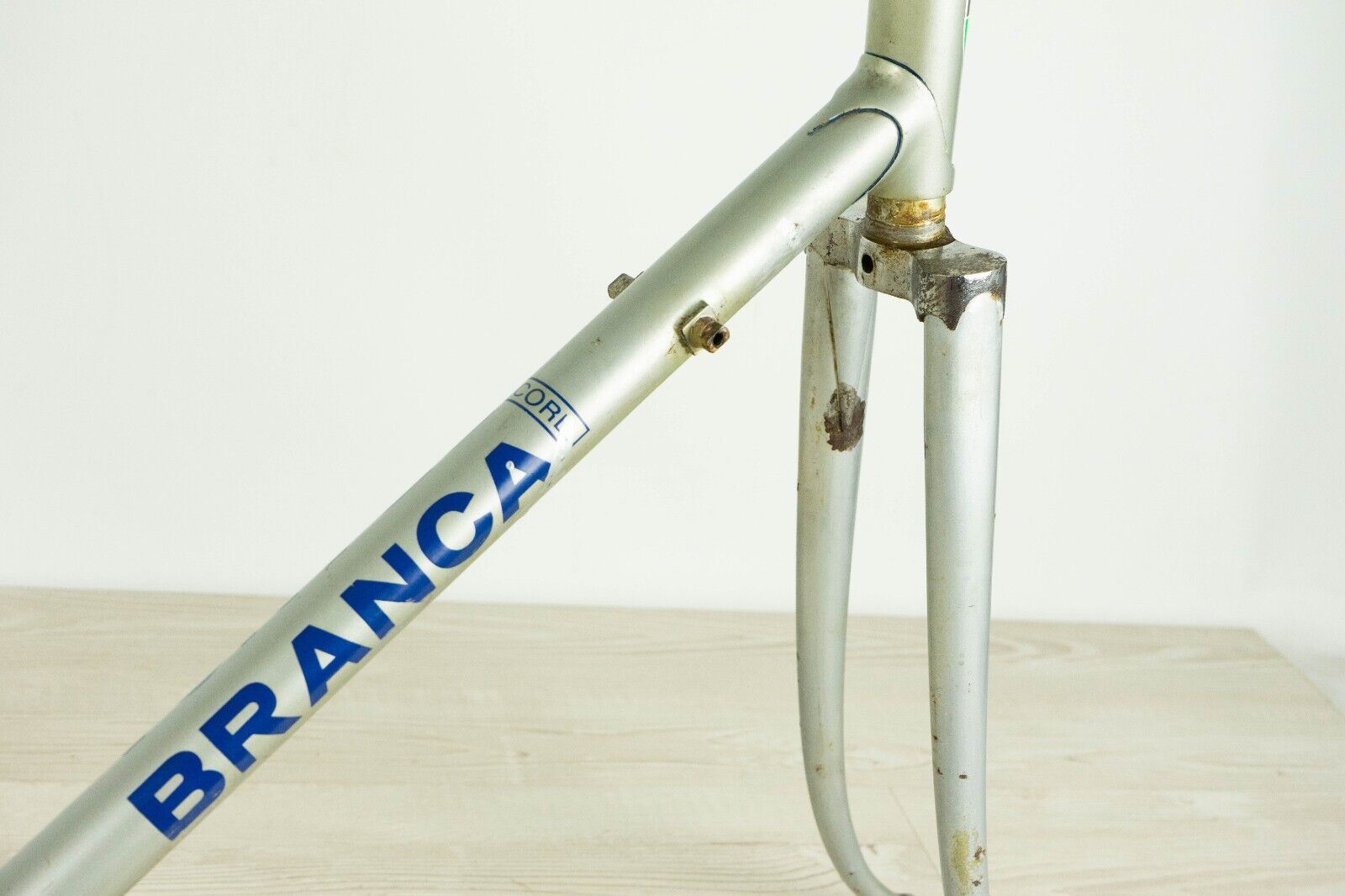

Branca
from Magnago, MI (Milano), Lombardia
Felice Branca mechanic to the team Filotex and Franco Bitossi "cuore matto - crazy heart" (due to a cardiac arrhythmia which often compelled him to stop midway in a stage) (171 wins in 16 years)
missed the near victory at the World Championship in Gap, France, where he was beaten by only a few meters by his teammate Marino Basso.


Branca had frames made (in chornological order) by Volta & his brother in law, Giuseppe Pino Pelà, Losa and maybe someoneelse even later

by Losa

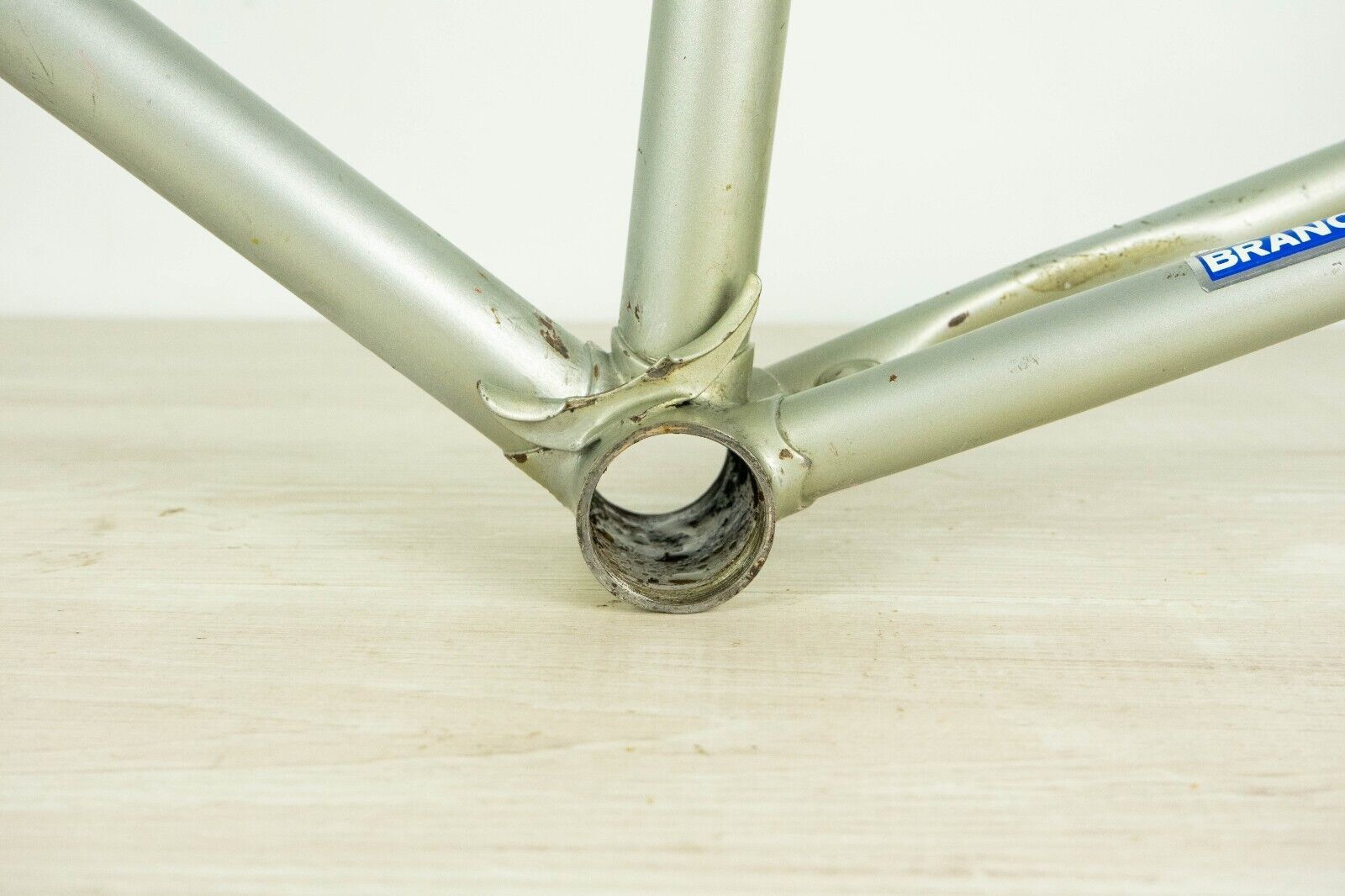

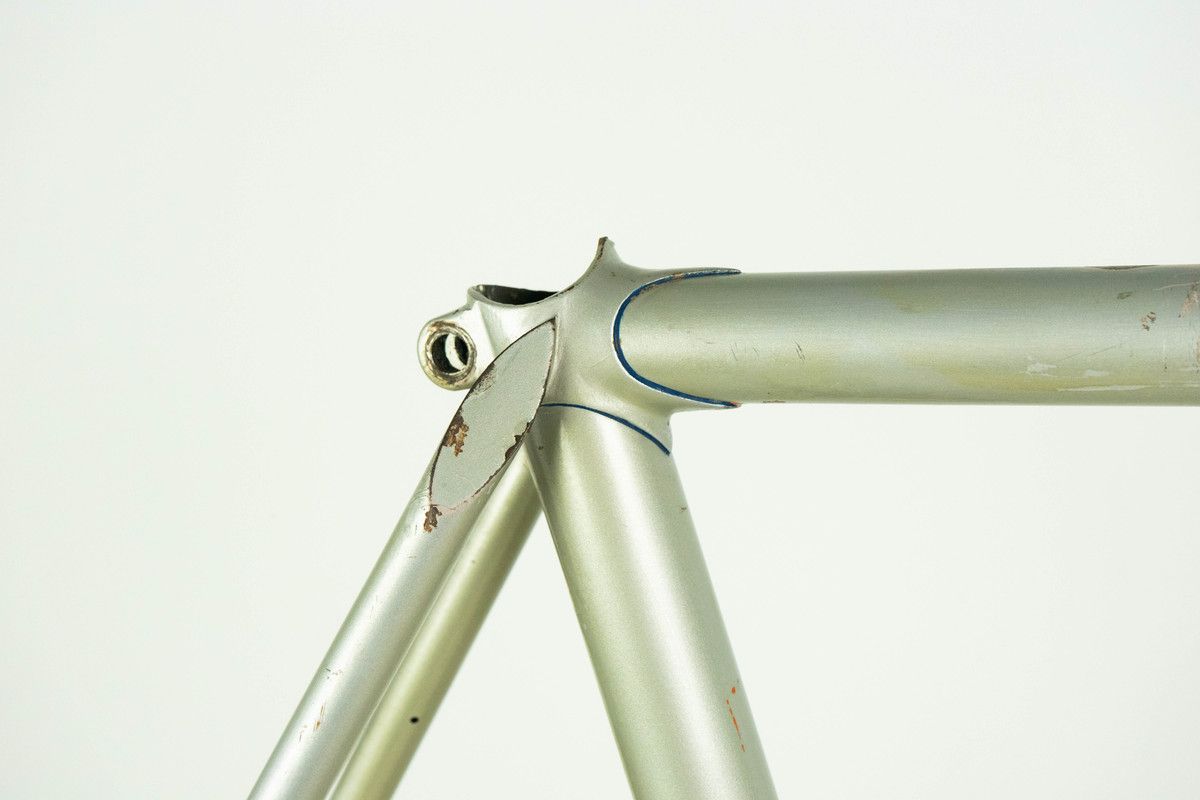

(pointed seatstay caps, bottom bracket shell bore holes towards the chainstays, direction/placing of ventilation bore hole on chainstays bridge, attachment of the dropouts, how the right chainstay ist flattened on the inner side towards the dropout as the left one too!!!, cut-outs on the fork crown reinforcement tangs , brake bridge Masi )



[regges]

Milani



[KleinMC2]

Milani

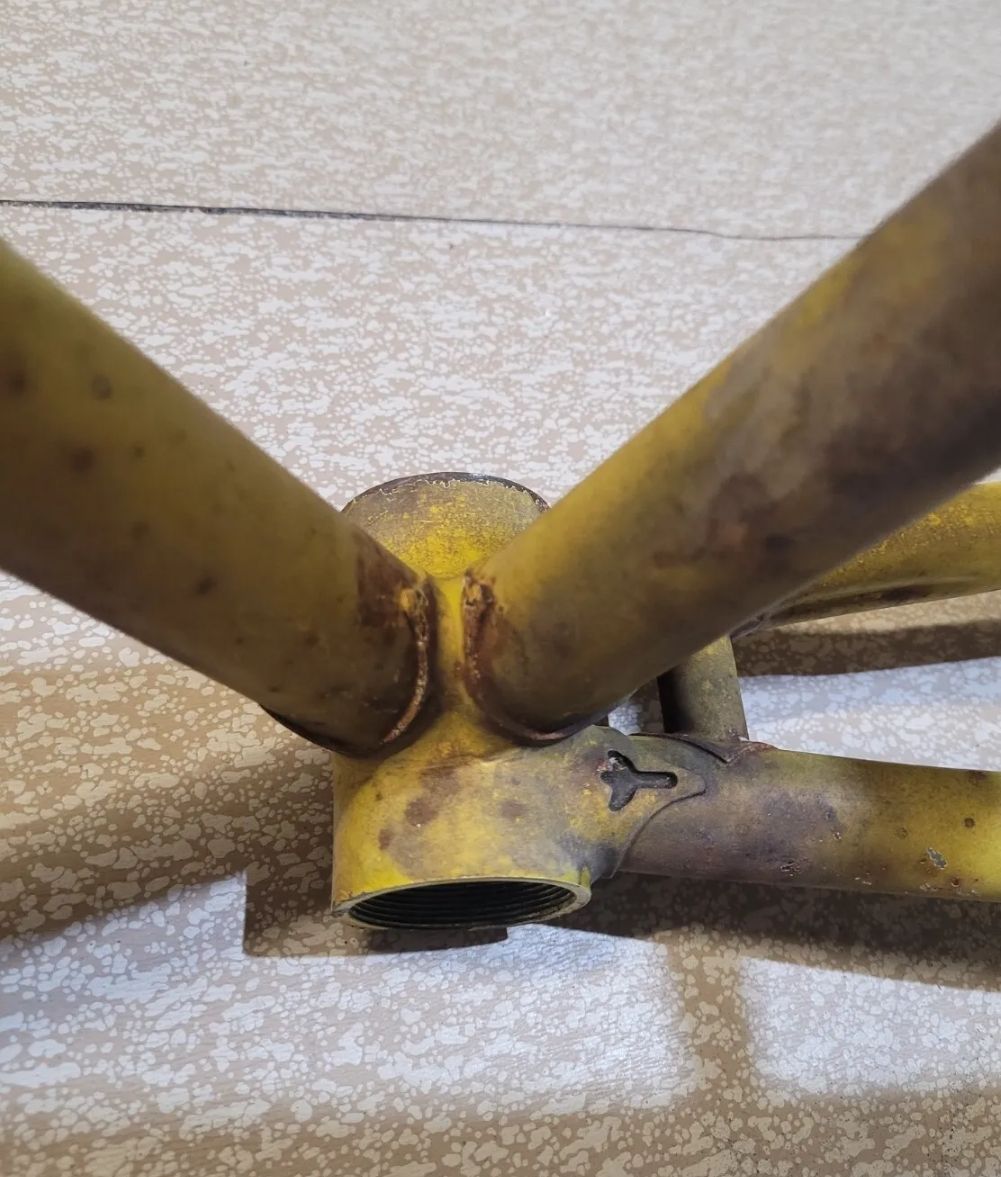

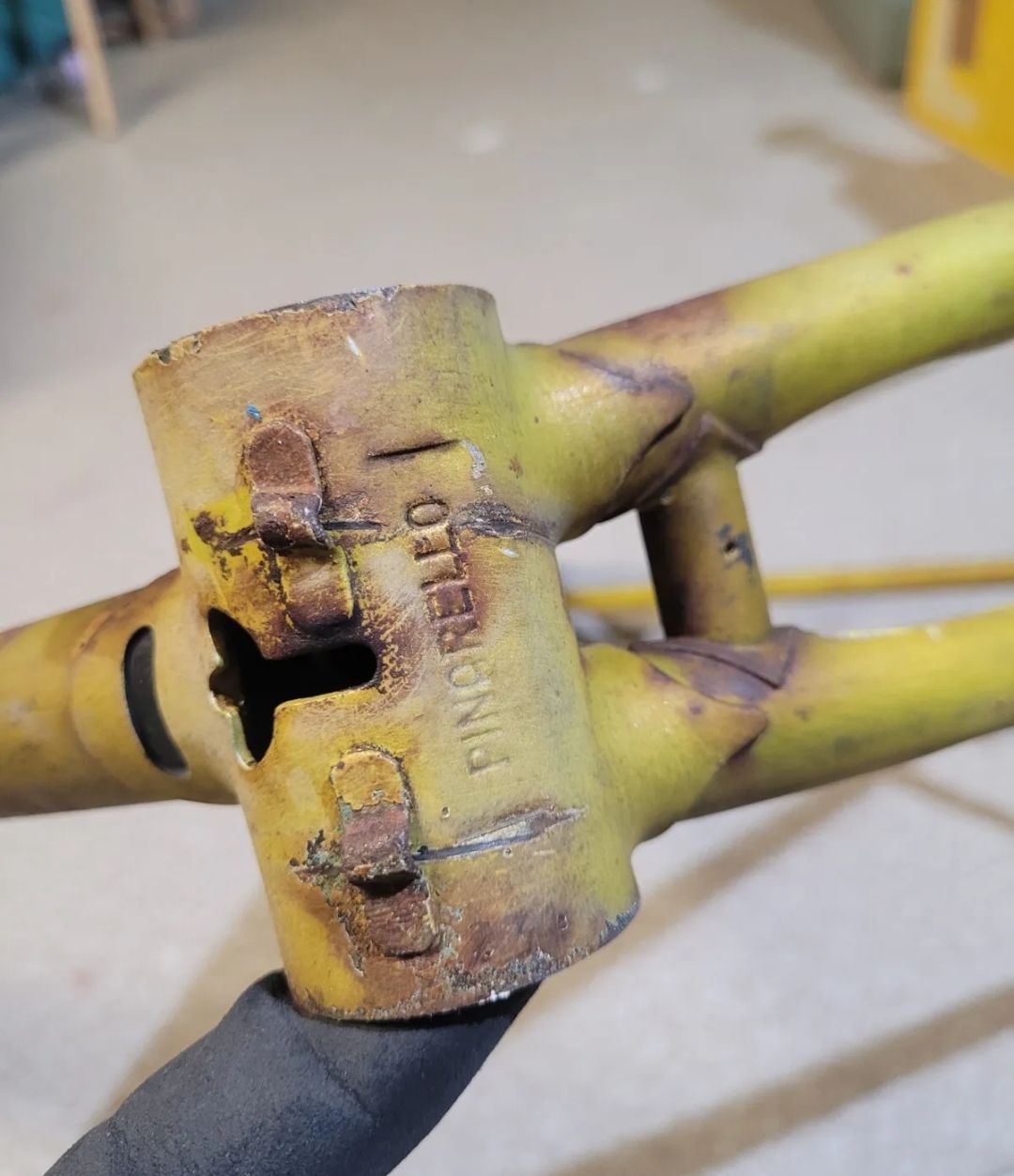

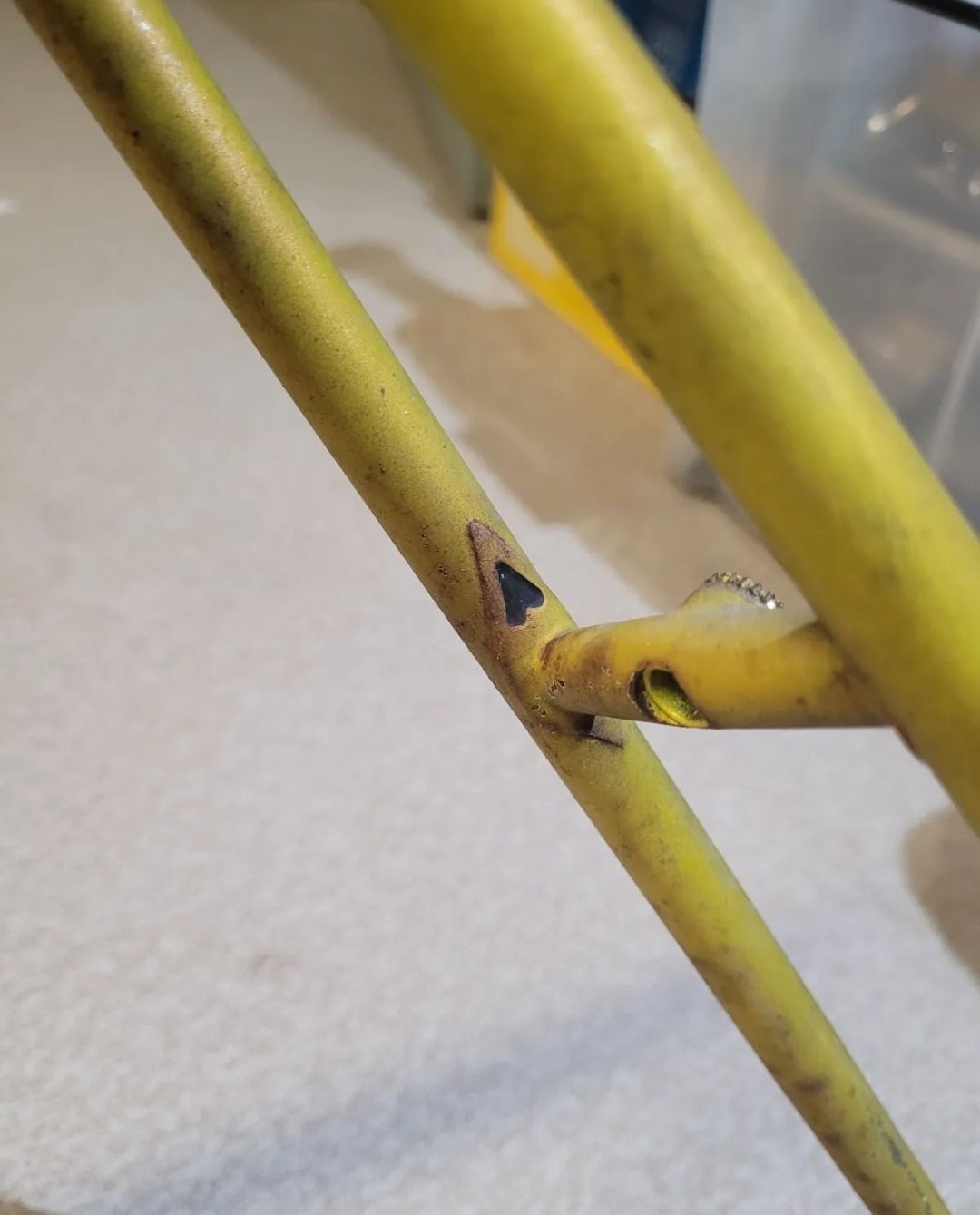

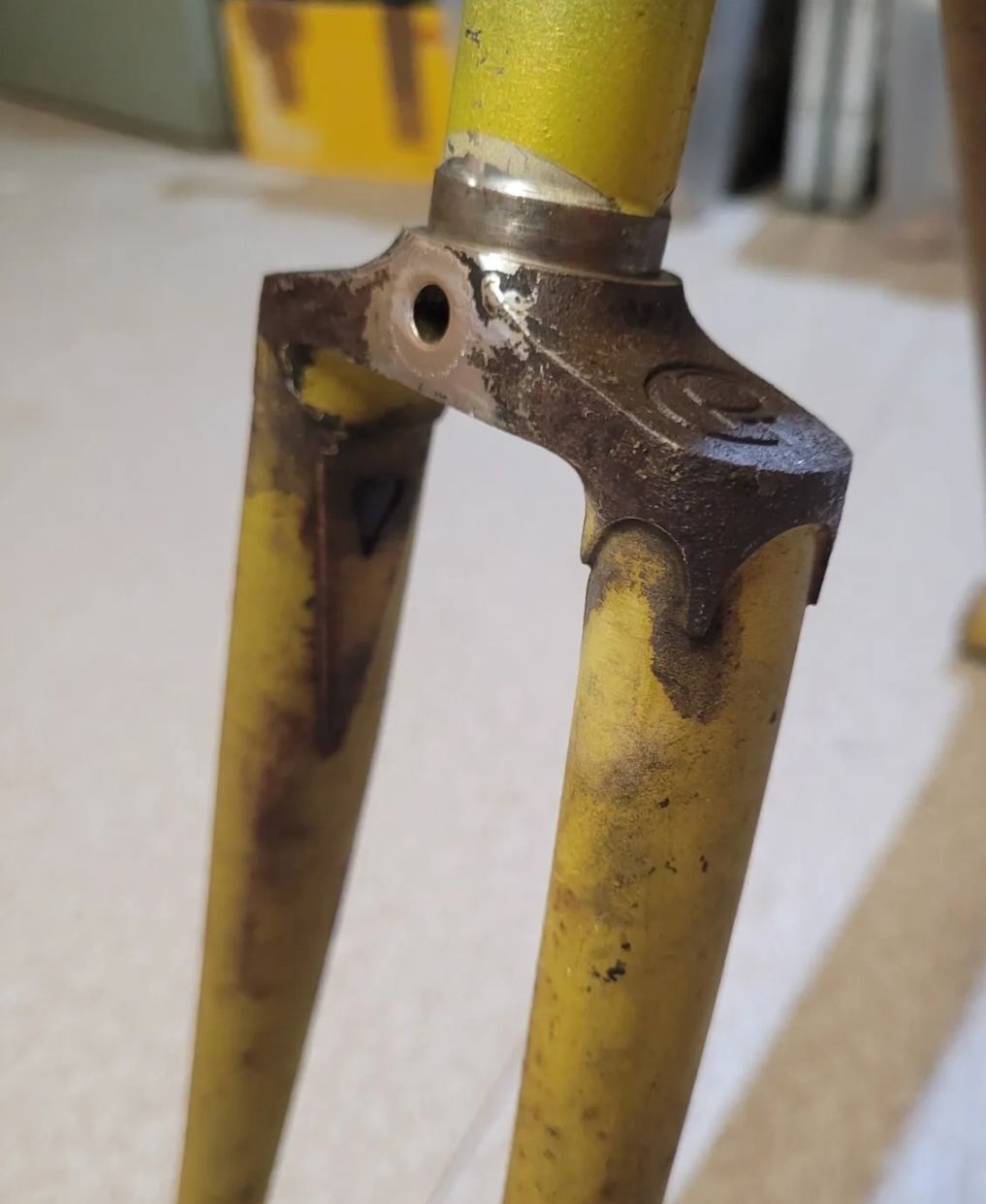

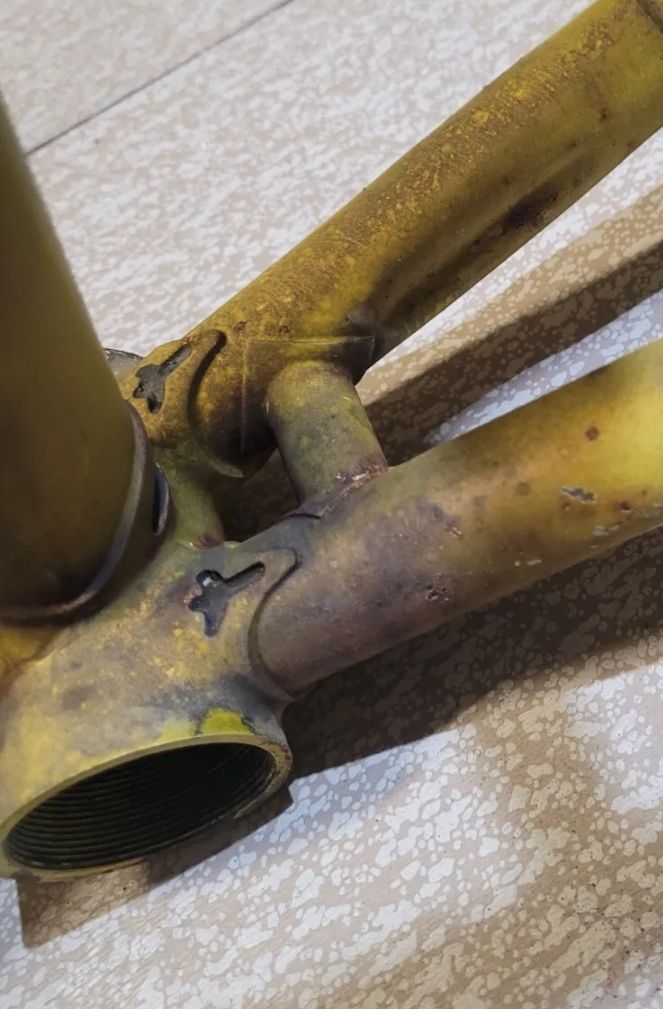

Anhang anzeigen 1380194Anhang anzeigen 1380195Anhang anzeigen 1380196Anhang anzeigen 1380197Anhang anzeigen 1380198

Pinarello Milani? Das habe ich schonmal woanders gesehen…



[regges]

Serafino Tomi



[Avi.1990]

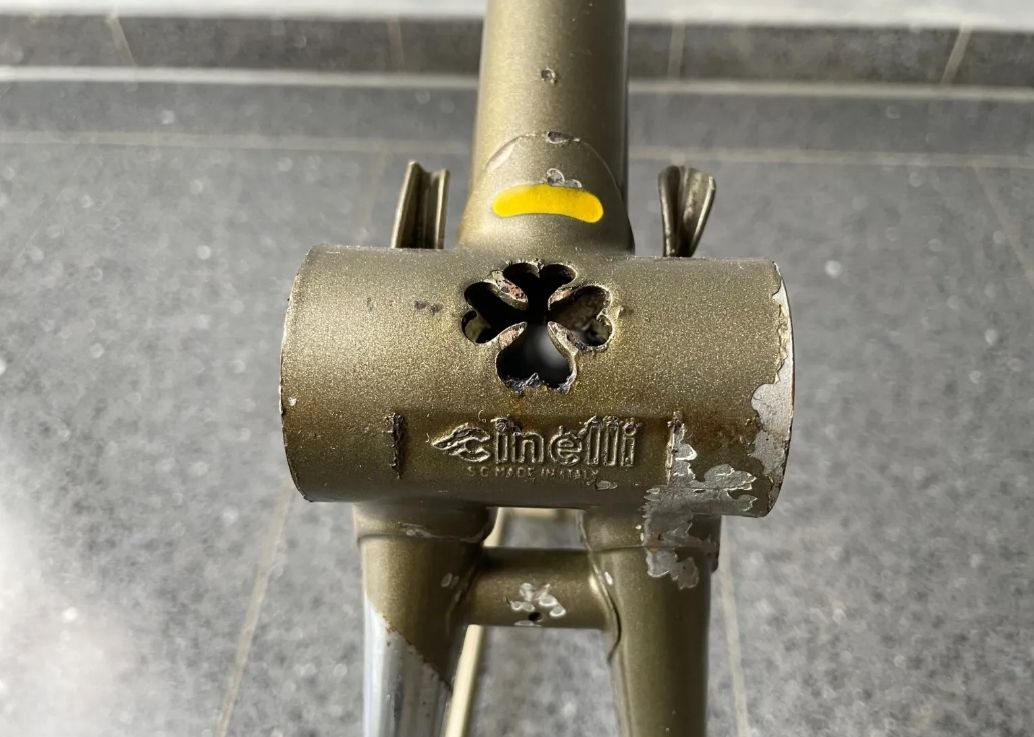

Serafino TomiAnhang anzeigen 1381149

ist hier scho drinne ;-) mit Zusatzphotos.
https://www.rennrad-news.de/forum/t...ate-bottom-bracket-shells.167126/post-5767815
https://www.rennrad-news.de/forum/t...ate-bottom-bracket-shells.167126/post-5767820
Lasset ruhig bidde drinne.



[Avi.1990]

Cicli Rossi
Gino Millani (father in law of ->) by Dario Pegoretti



[Avi.1990]

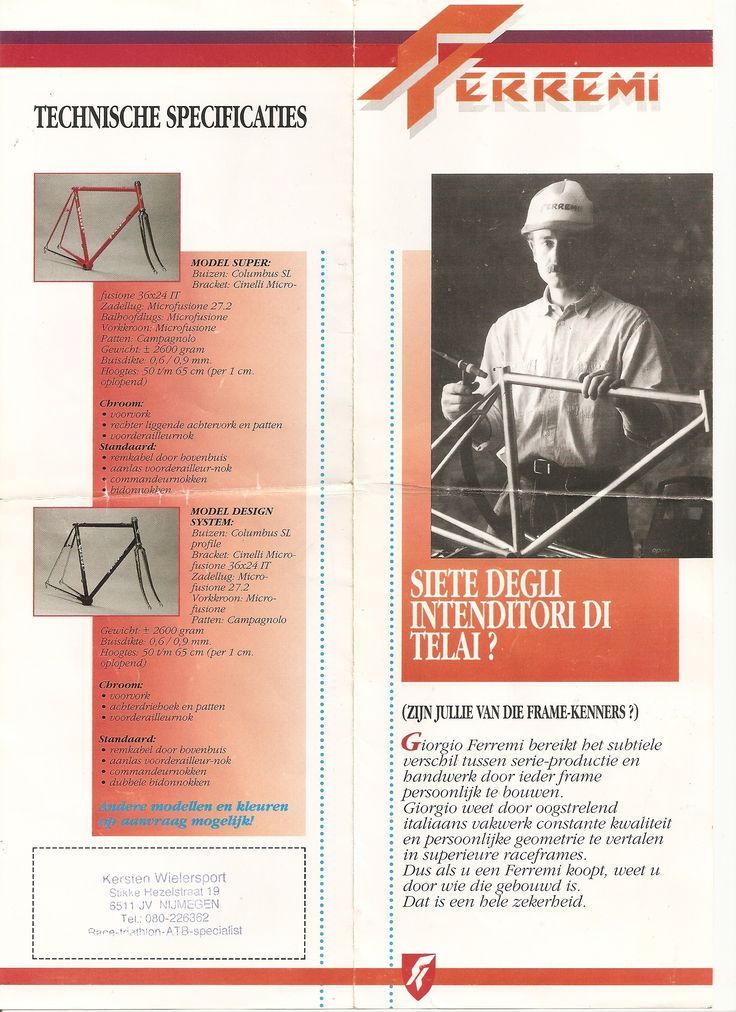

Ferremi

Giorgio Ferremi, Brescia, Lombardia



[Avi.1990]

Coassin
(of Vittorio Coassin)
Place du rondeau 3
Carouge, 1227 GENEVE

2nd by Losa »Vanni« Losa filius faber automatarii - clockwork makers son / Uhrwerkmachers* Sohnemann »Losa« , form Erba (weed), Como moved later in 60s to Vittuone, Milano

https://k-i-n-g.ch/en/coassin-steel

auch hier tuellich archiviert :https://www.rennrad-news.de/forum/t...ate-bottom-bracket-shells.167126/post-5545212



[Avi.1990]

letztens wer ein blaues praechtiges Zanazzi gesehen, von Losa gemacht??
finde es nuescht mehr
Einbildung ist keine Bildung ???



[Avi.1990]

um die Ecke auch Cicli Santa Maria (Via Rubens 26 a 20148 Milano) seit 1962, hatten tuellich auch Rahmen von Losa irgendwann Mal, hier im Thema tuellich tt ff zu finden und kannten beide Zanazzi...
Mailaender Rahmenbauer Tale Ranzini, 30-50 Jahre, Via (Weg) Rembrandt / Piazzale (Platz) Siena, Mailand

around the corner also Cicli Santa Maria since 1962, also had frames from Losa at some time, of course to be found here in the thread and both knew Zanazzi...

Milan frame builder Tale Ranzini, 30-50 years, Via (road) Rembrant / Piazzale (square) Siena, Milan



[Avi.1990]

Mosconi, Padova

telaista | framebuilder | Rahmenbauer:
Losa »Vanni« Losa filius faber automatarii - clockwork makers son / Uhrwerkmachers* Sohnemann »Losa« , form Erba (weed), Como moved later in 60s to Vittuone, Milano
