Scatola movimento centrale d'artigano | Tretlagergehaeuse - Rahmenbau-Liebe Im Detail (Handwerkskunst) | elaborate bottom bracket shells

[Avi.1990]

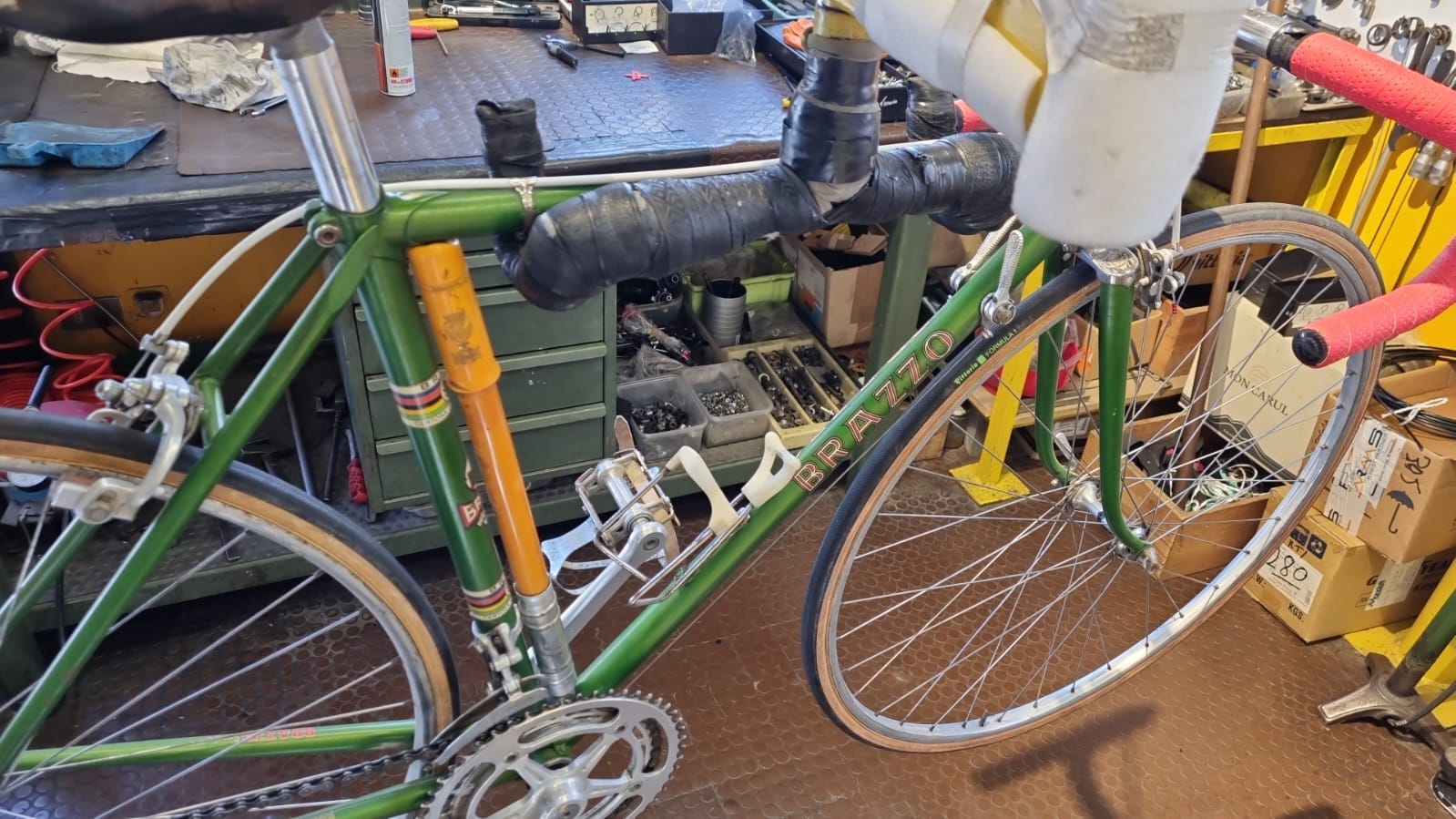

Brazzo

Bruno Brazzo, Certosa di Pavia

Losa



[Avi.1990]

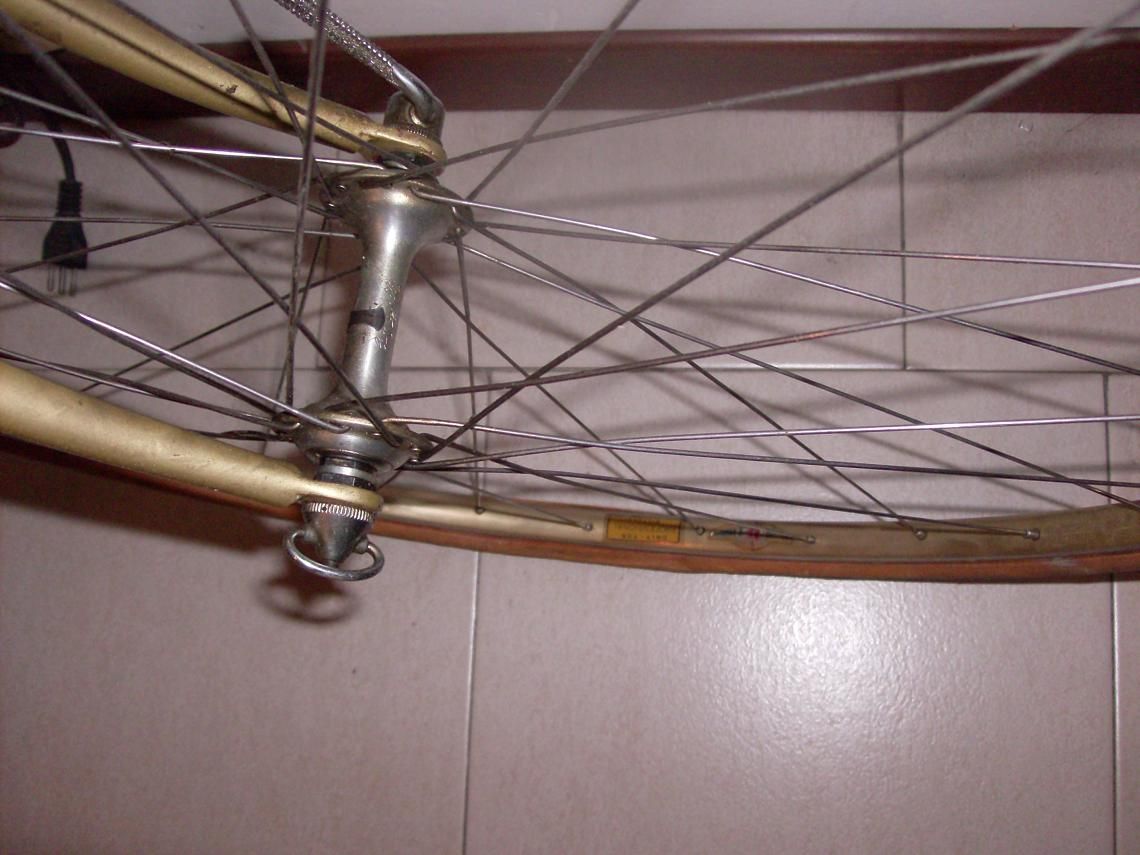

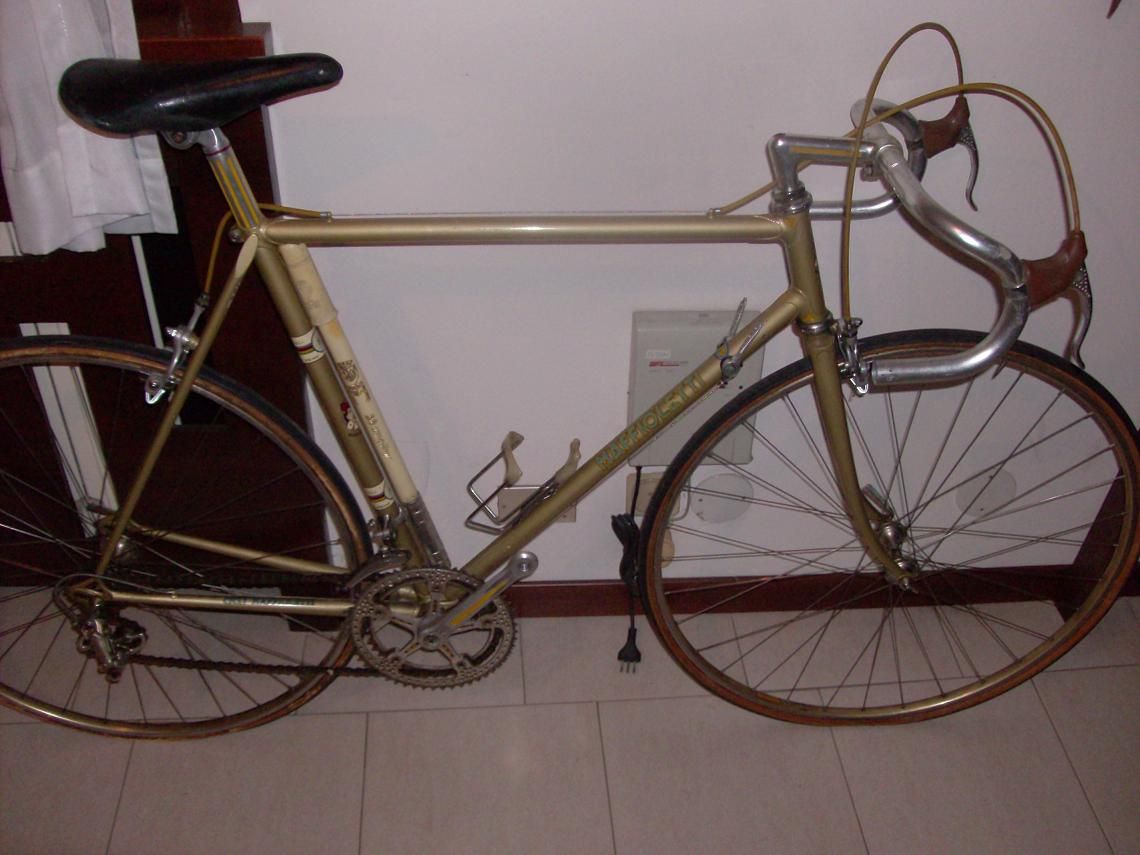

Maffioletti

jolly joker pista

by il vulcano di Brescia, Piero Serena

brazed over a coal forge, and kept his procedure always secret, and brazed/operated alone, locked himself up, was also kind a cellar / basement (similar to the beginnings of Rivola). Since he brazed over a coal forge no fame jig could be used, instead he pinned his frame tubes and lugs. puntatura & spine | Stiften & Stifte

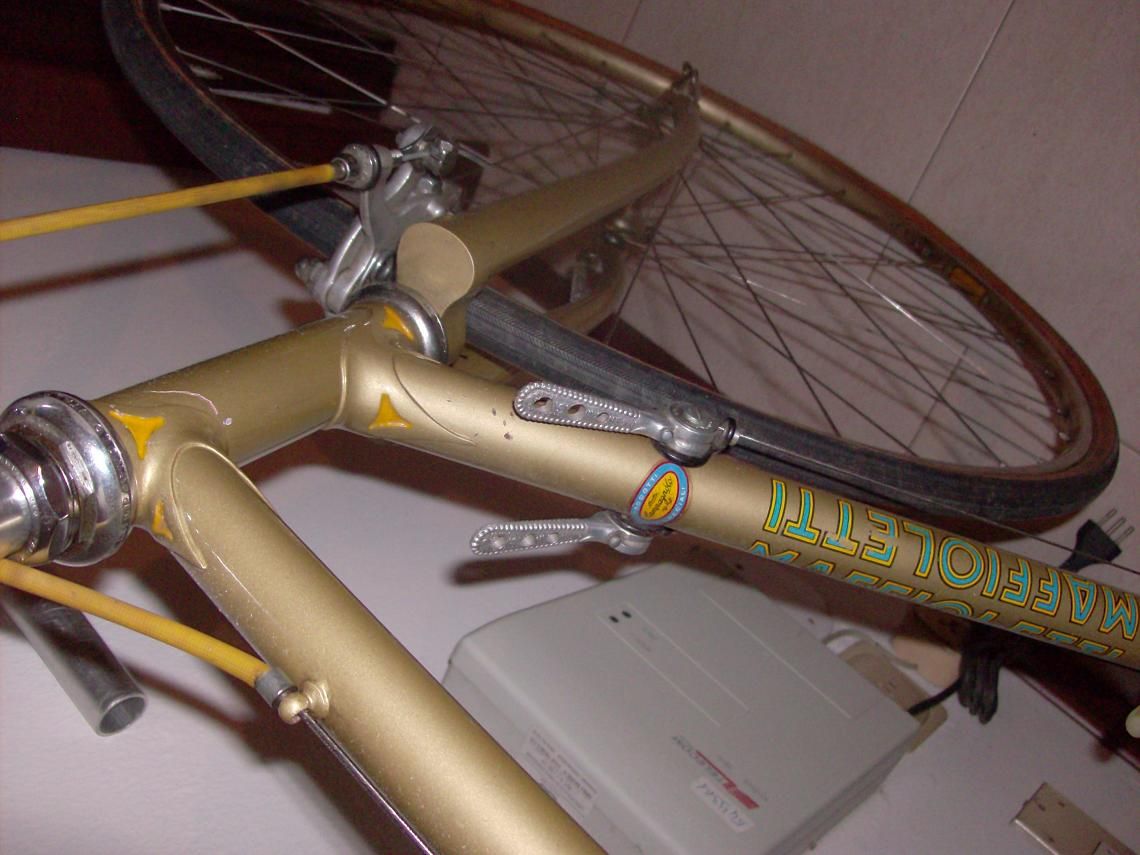

Maffioletti

jolly joker strada

by il vulcano di Brescia, Piero Serena

brazed over a coal forge, and kept his procedure always secret, and brazed/operated alone, locked himself up, was also kind a cellar / basement (similar to the beginnings of Rivola). Since he brazed over a coal forge no fame jig could be used, instead he pinned his frame tubes and lugs. puntatura & spine | Stiften & Stifte

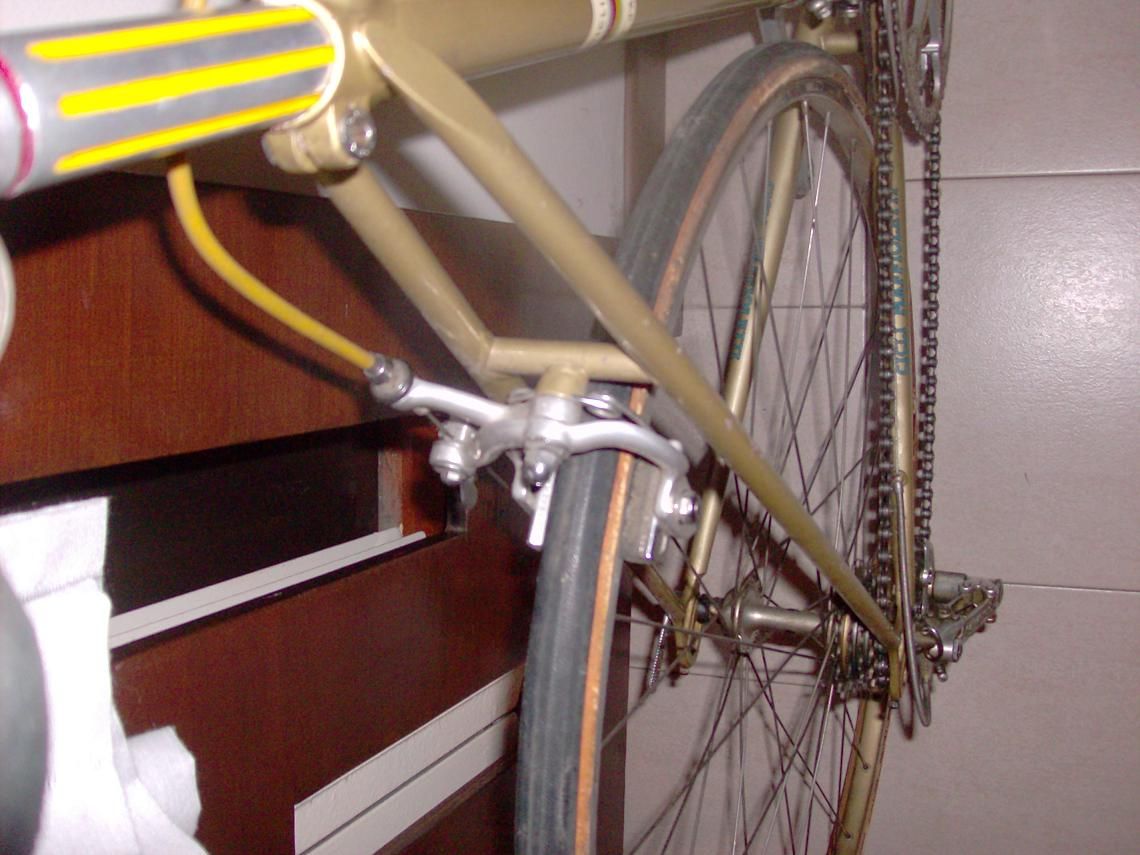

brazed on brake calipers
both frames as visible belong to the same collector in Milano, who also owns a great Gilardi with Losa decals , and is still selling an older Rivola



[Avi.1990]



[Avi.1990]

kam tuellich von Sammler Gio' uss Lodi



[Avi.1990]

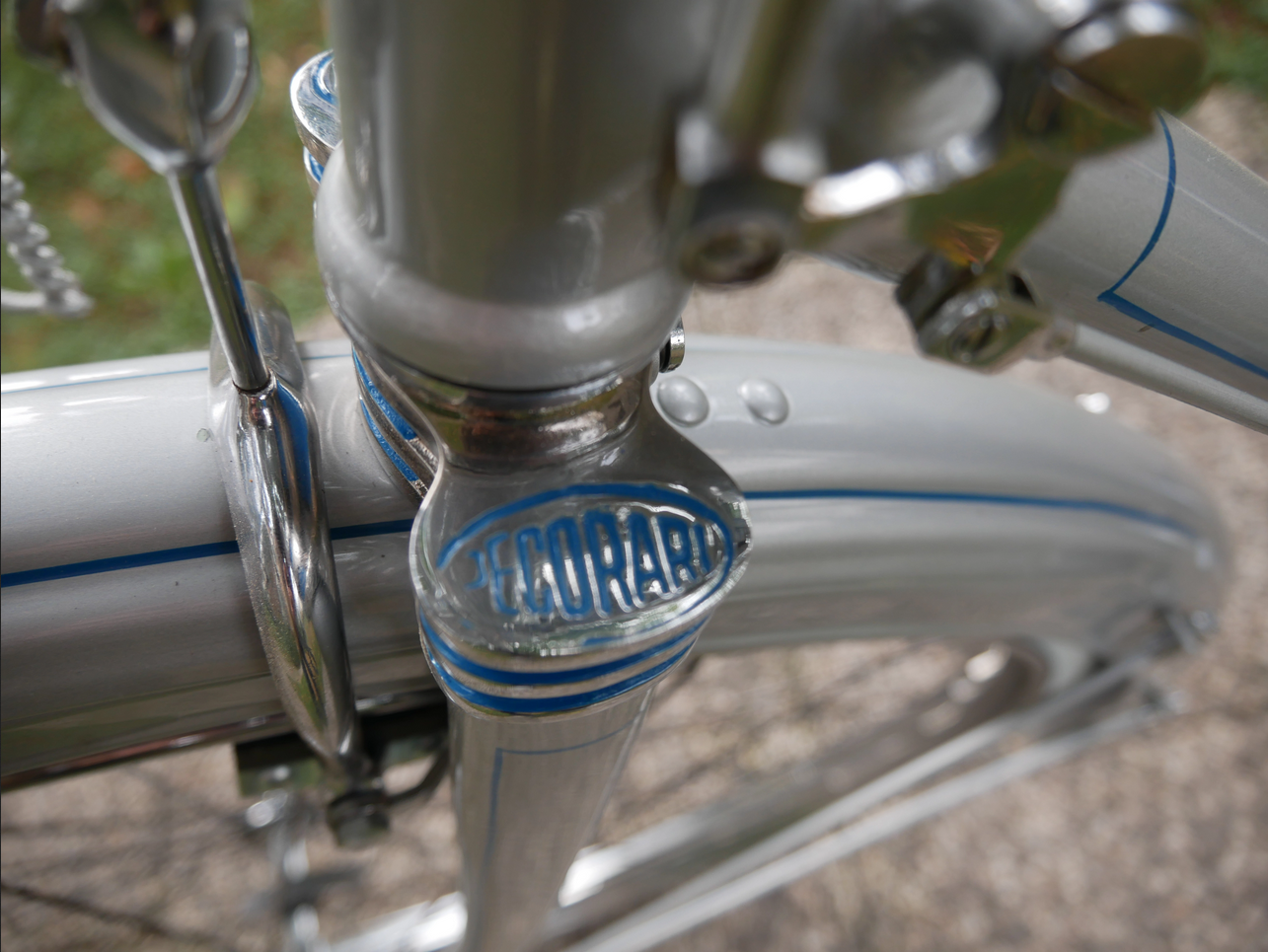

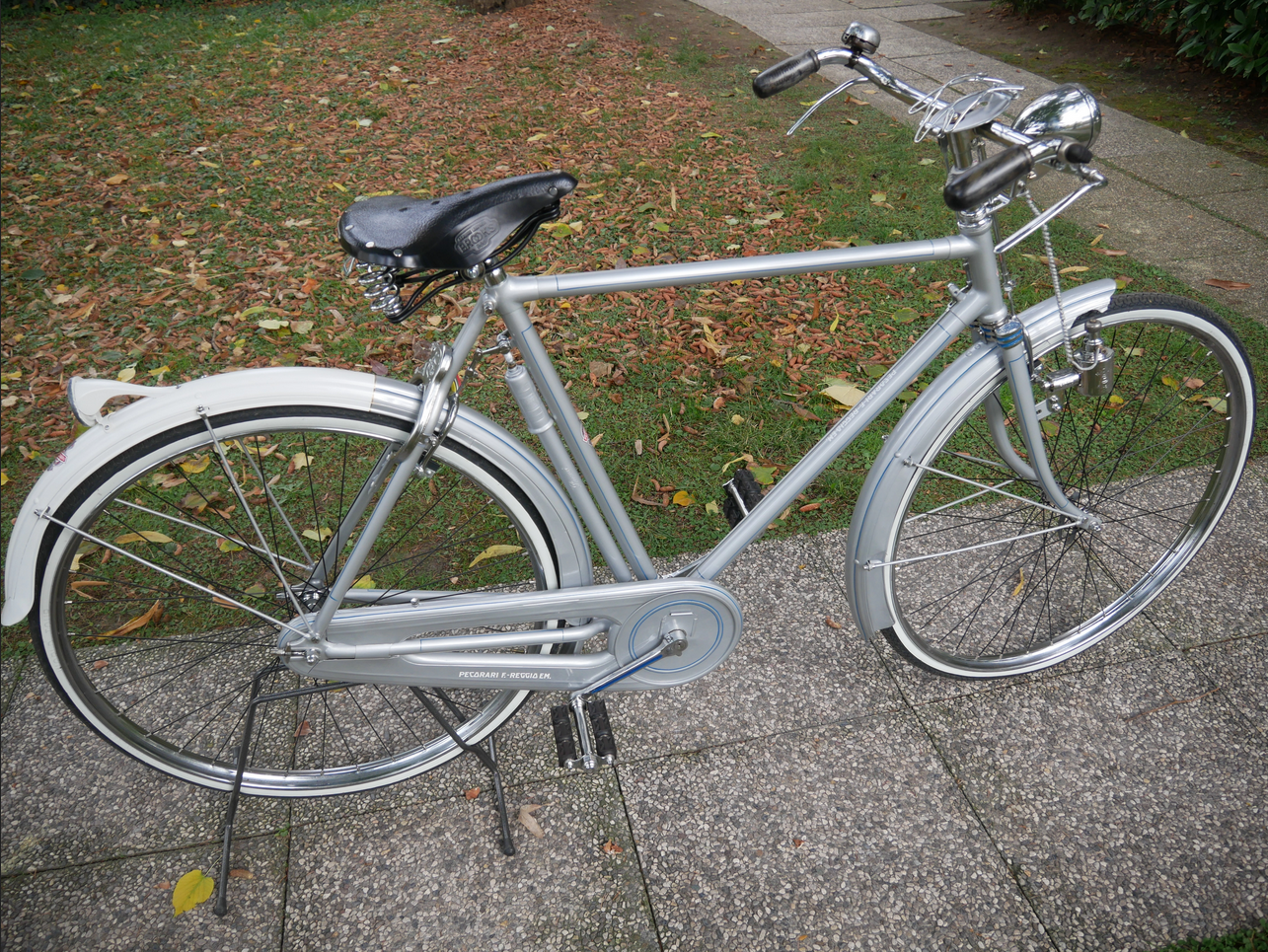

Officina Cicli Pecorari
Reggio Emilia, Emilia-Romagna
war wohl mit Marastoni wie Olivetti verbandelt.. ihr Lehrmeister...



[Avi.1990]

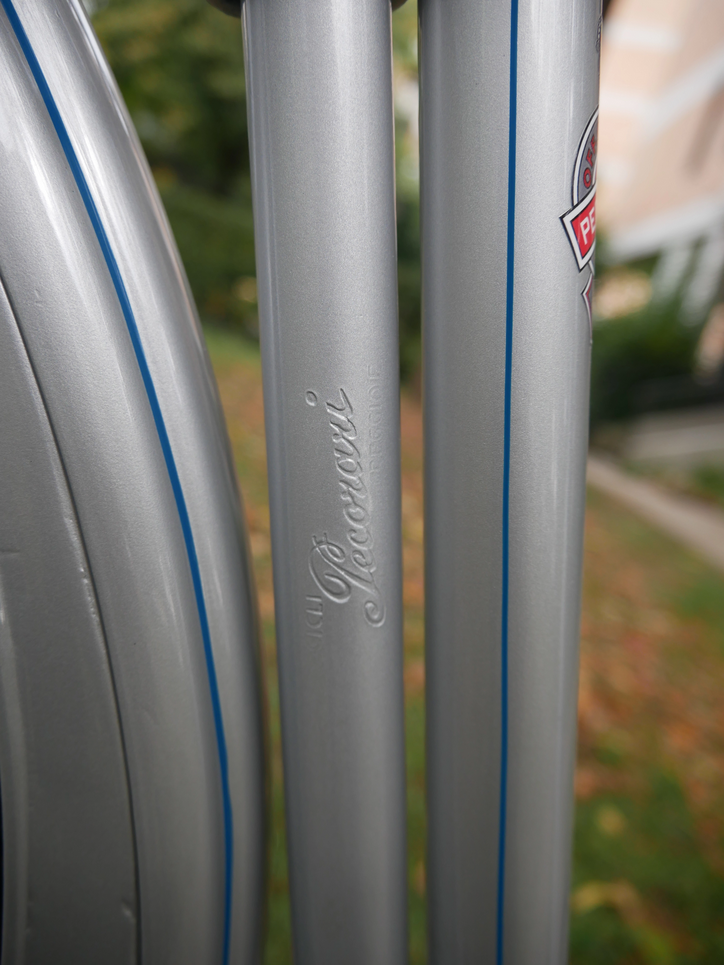

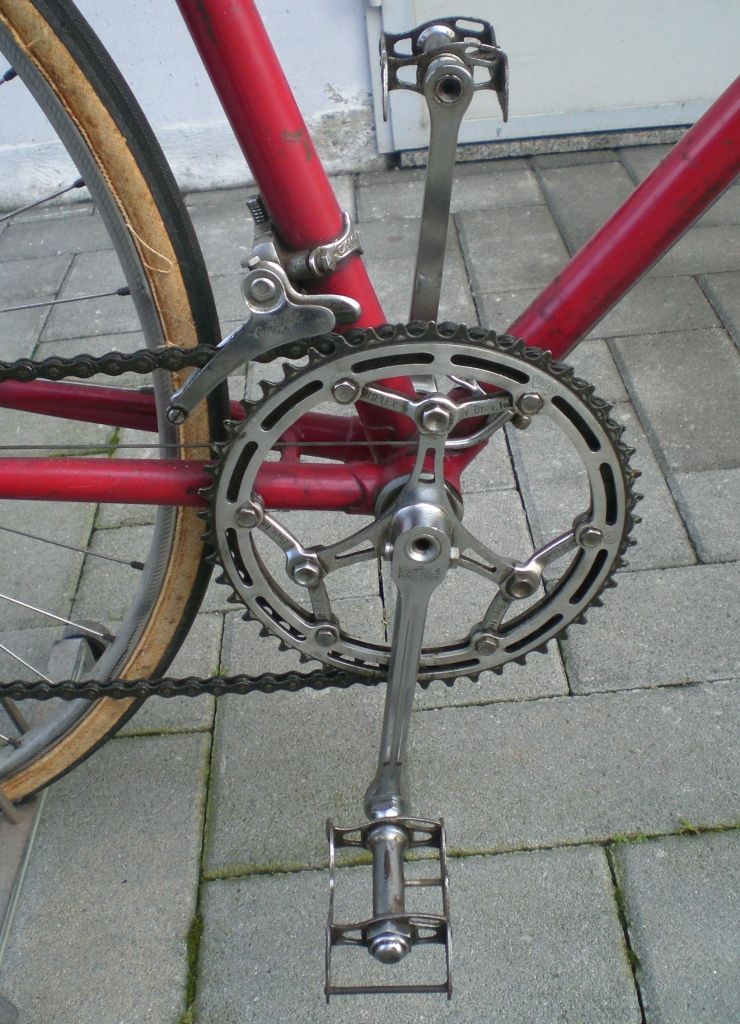

Pecorari
Jahrgang 1935



[Avi.1990]

Ortelli
Ortelli

Lazzaro *1892 fu Vito *1921

custom bespoked bicycles since 1921 till 1990

@Faenza, Emilia-Romagna, ITA

Vito Ortelli

•17•76•

17th frame of the year 1976

panto work Gino Cornazzani @ Castel Bolognese, Emilia-Romagna

(??verniciatura Mario Martini, @ Lugo, Ravenna, Emilia-Romagna??) need a confirmation

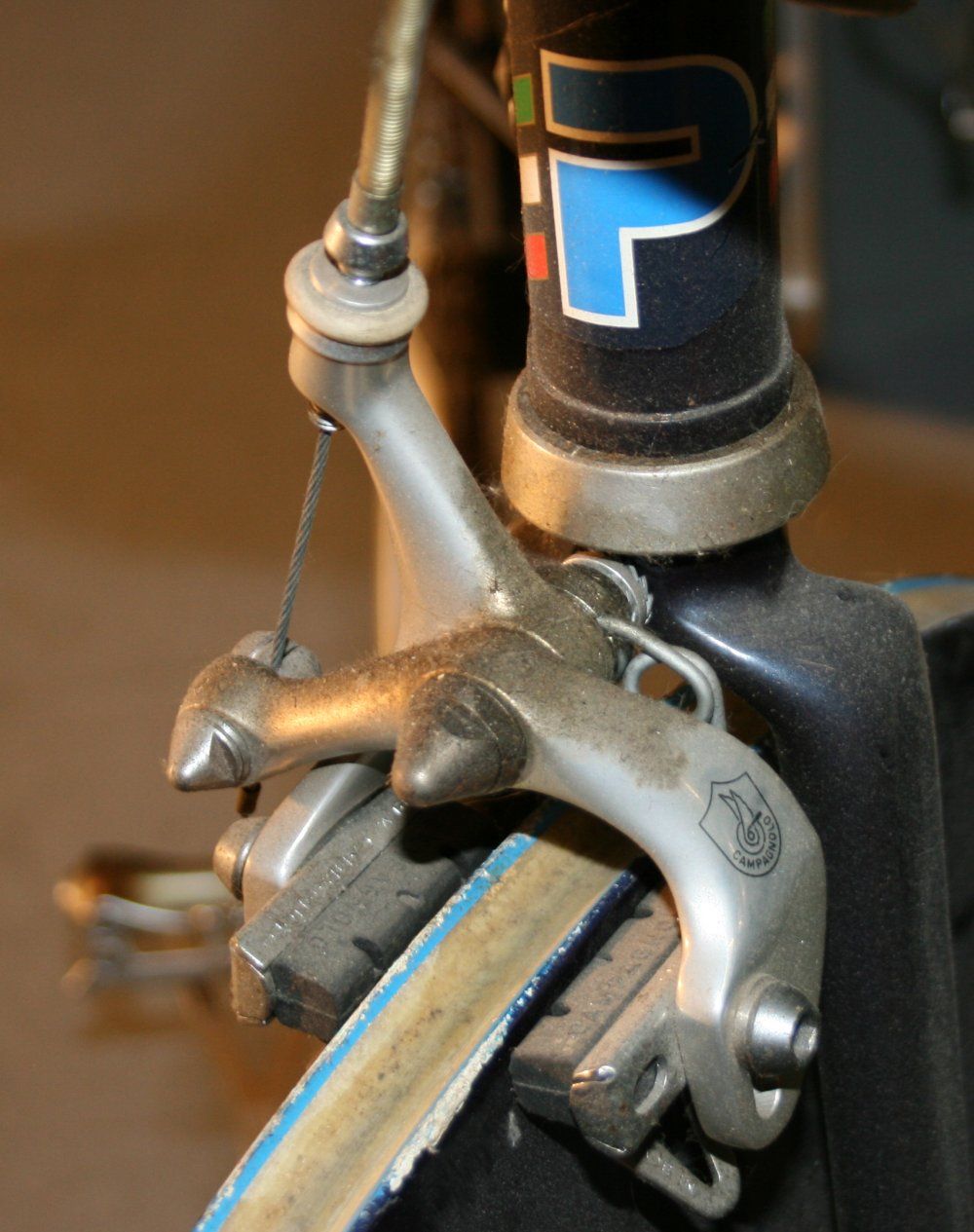

braze-on brake claipers
modified drop-out Campagnolo 1010/b or Piccolo


bottom bracket shell cut-out, 9 holes, reminds me of Colnago (late 60s), Sedazzari and framebuilder master L. Gilardi



[Avi.1990]



[Avi.1990]

L0SA S0SA
in Shanghai, samt der Rivola Superleggera 363, oder einer nos&nip Galli Criterium gruppo in petrol blue / brunito...
oder ebenso juengst einem Mino Denti



[Avi.1990]

Serena
PROFESSIONAL Super Special Corsa
by il vulcano di Brescia, Piero Serena

brazed over a coal-fired furnace, and kept always his procedure secret, and brazed/operated alone, locked himself up, was also kind a cellar / basement (similar to the beginnings of Rivola). Since he brazed over a coal forge no fame jig could be used, instead he pinned his frame tubes and lugs. puntatura & spine | Stiften & Stifte

drop-out rare Camapgnolo Piccolo %



[Avi.1990]



[Avi.1990]

Adriatica
Pesaro, Marche
Misano Adriatico

Giorgio Lucchini from Rimini, Emilia-Romagna build for shops&brands like Adriatica (one frame displayed here in the thread by GL Giorgio Lucchini) of Misano Adriatico form Pesaro, Marche and his other brand Primavera (only two Primavera in this thread both by Ciöcc Giovanni Pelizzoli, one marked Adriactica and Primavera the same time ) and Elementi from Rimini and Cicli Nanni from Cesenatico, Forlì-Cesena, Emilia-Romagna

year: 1981

frame of the year number: 38



[Avi.1990]

Gemini
Paris
F 13
Henri Dépierre (1919 – 1983)

He built bikes for some of the greatest racing cyclists of his time such as Luis OCAÑA, who won the Tour de France in 1973 on a bike built by DEPIERRE. To celebrate the victory of Ocaña, Depierre added a map of France on the Cinelli front fittings of its bikes starting from 1973. Depierre also added a “Le Coq” cutout on the front lug in 1978 which lasted until 1980 when he handed over the business to his son, Jacques.

During the late 1940s/ early 1950s Henri Depierre build bikes under “Cadres PERFECTION” brand:

During the 1950s, to survive the crisis of the bicycle, victim of the success of the moped and the automobile, Henri DEPIERRE changed activities and began to manufacture lighting fixtures for Serge MOUILLE, metal artist and lighting designer



In 1967 Henri’s son, Jacques (1946 – 1996), finished his military service, so Henri decided to open up a new workshop as a craftsman frame builder, taking Jacques on as the workshop assistant to build up the bikes and thus, Gemini brand was created (name of the brand could come from his son, Jacques having Gemini as a birth sign).



[Avi.1990]

Rivola
Massa Lombarda, Emilia-Romagna 1963-2006

founder Giovanni Rivola (1925-1996) fu Fausto&Gianni

since 1963, first in the basement/cellar of the house and from 1964 @ Via Amendola, Massa Lombarda, Emilia-Romagna till 2006

build & brazed by Gianni Rivola, Rivola family member & inhouse framebuilder from 1978 till 1993.
Learnd for two years, with twice-weekly visit, from maestro artigiano from Bologna, Umberto Chiesa, who build in the early career of Felice Gimondi his frames, or later under Rivola for Jose Manuel Fuente 'el tarangu' (Kas his team), quadruple consecutive winner of the green (mountain) jersey at the Giro, record holder, in Merckx words, the greatest climber of modern cycling. (Eddy said that 1972)

Rivola Competition
557

from 1984 supposedly ;- )

frame pinned and partially brazed over a coal-fired furnace using legno dolce - softwood {literally sweed wood}
The first brazing method used to join head tube, bottom bracket shell and seat tube was brazing with a coal-fired furnace (softwood-based), which took about an hour and a half. Therefor no frame jig could be used, instead the frame tubes were preattached through the techique of pinning, using (metal) pins. The rear triangle and dropouts were brazed separately with a brazing torch and Castolin to create a stronger joint.

20 labour hours for a frame - almost three (business) days


preferred lugs Cinelli!

Cinelli SCM scatola
Campagnolo 1010/b forcellini



[Avi.1990]

Cerbai

Firenze, Toscana (from Toscana, concretizing from the gates of grosseto, is Giuseppe "Pino" Pelà, his alumni Irio Tommasini is from Grosseto, and il sarto Faliero Masi is from Sesto Fiorentino, a comune in the metropolitan are of Firenze)


quattro fagioli four beans bottom bracket shell cut out of Pelà

brazed by Irio Tommasini

no fork



[Avi.1990]



[Avi.1990]

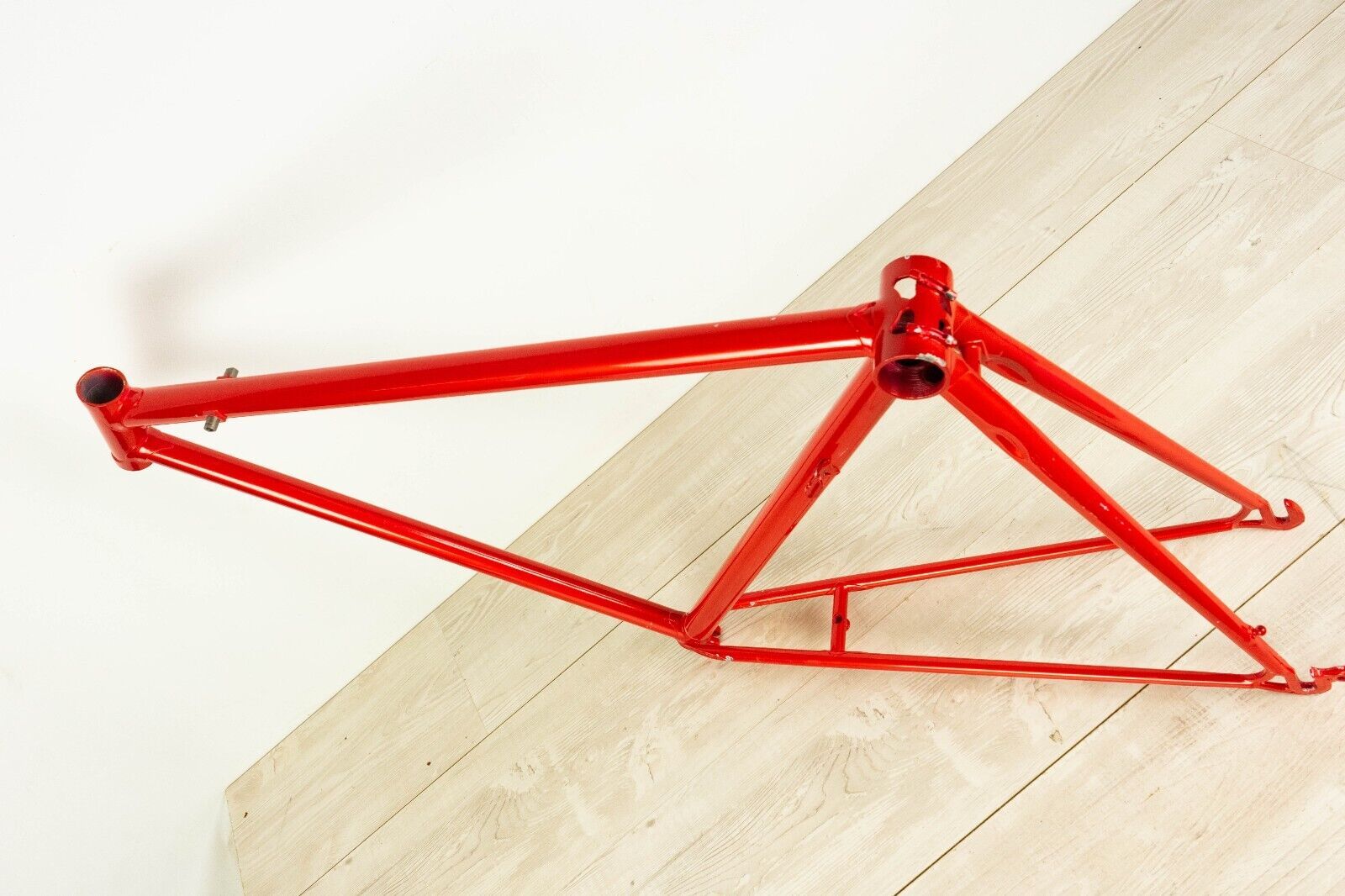

Cerbai
Firenze

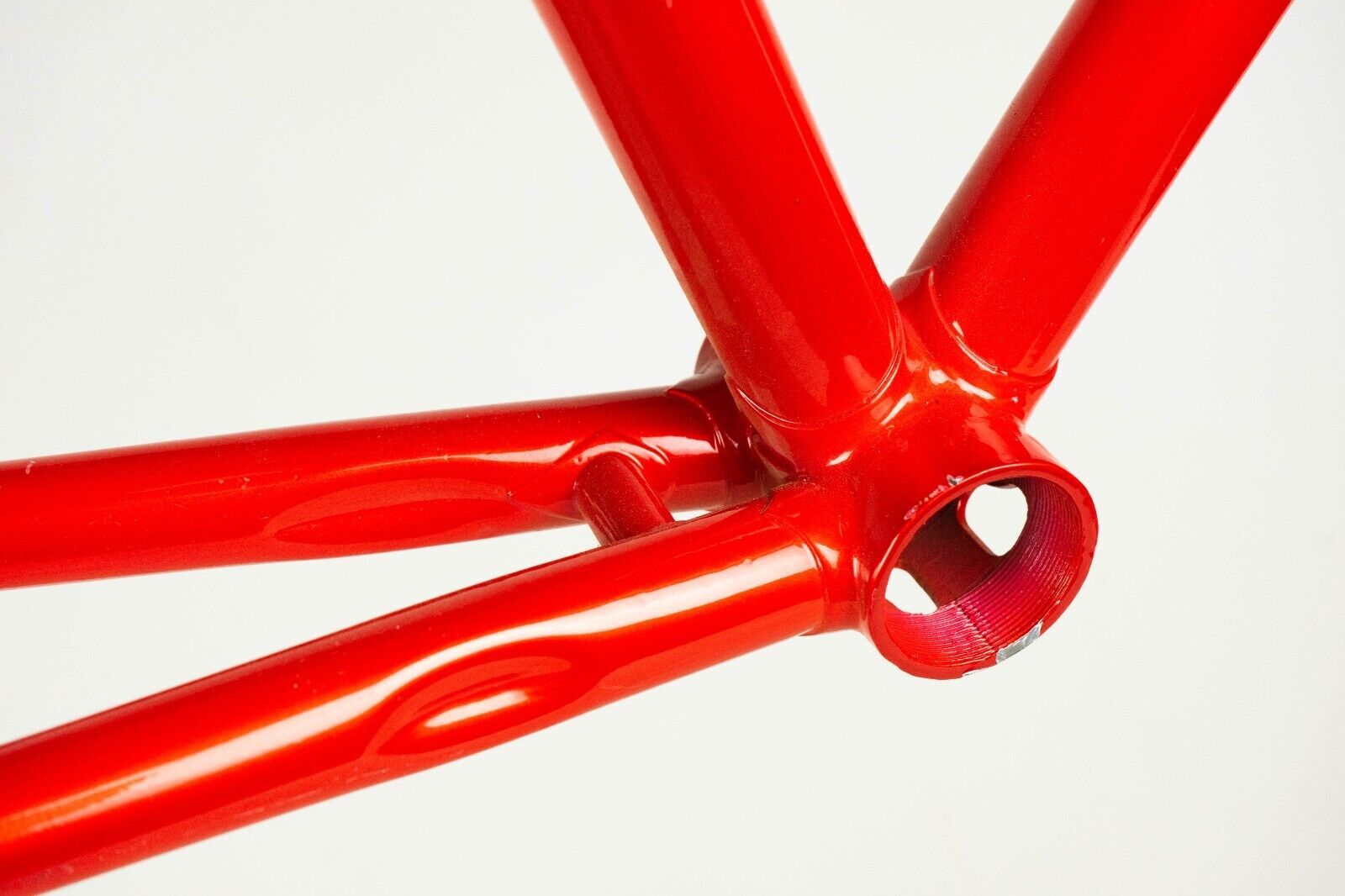

fillet brazed

fork is actually for Paterlini I would guess, actually a german brand with frames from italy, most prominent framebuilder providing them with Paterlini frames, was Piero Serena* from Brescia.

*brazed over a coal-fired furnace (Holzkohlenglutbett), and kept always his procedure secret, and brazed/operated alone, locked himself up, was also kind a cellar / basement (similar to the beginnings of Rivola). Since he brazed over a coal forge no fame jig could be used, instead he pinned his frame tubes and lugs. puntatura & spine | Stiften & Stifte

Roberto Visenti rode always Serena s.

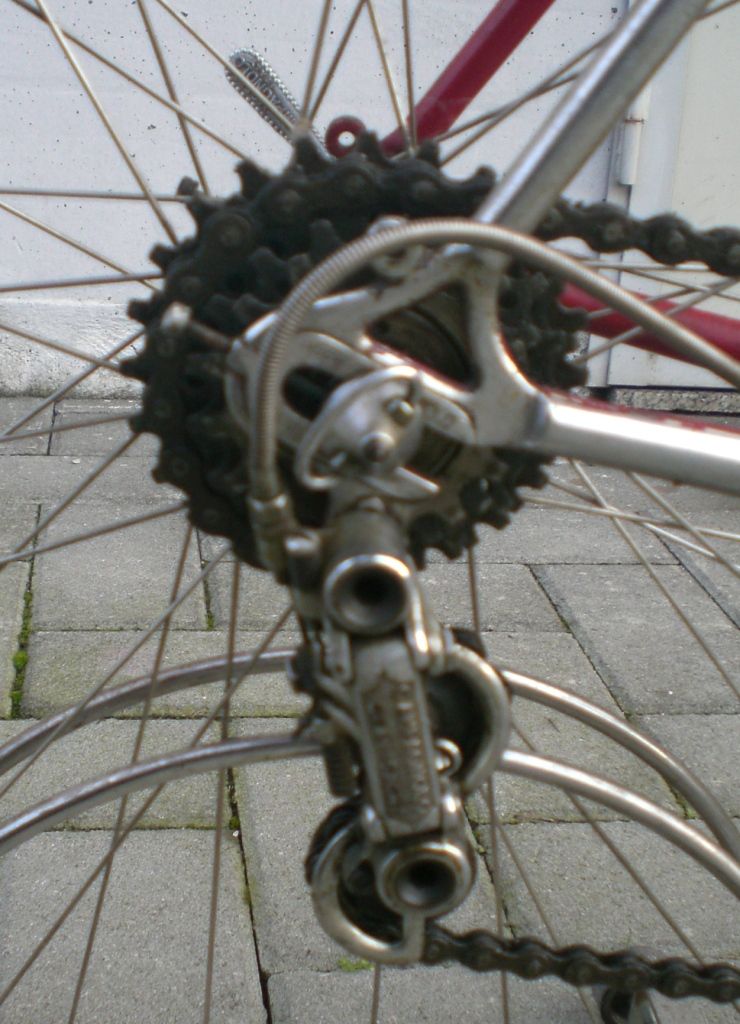

allestita Gipiemme CronoSpecial seatpillar / reggisella, mozzi / hubs, pinze freni / brake calipers / serie sterzo / headset maybe??? and last but least the rear derailleur / cambio posteriore



[Avi.1990]



[Avi.1990]



[Avi.1990]

Paterlini
(noch im Besitz des Hauses Paterlini, hier im Forum gezeigt worden bereits)

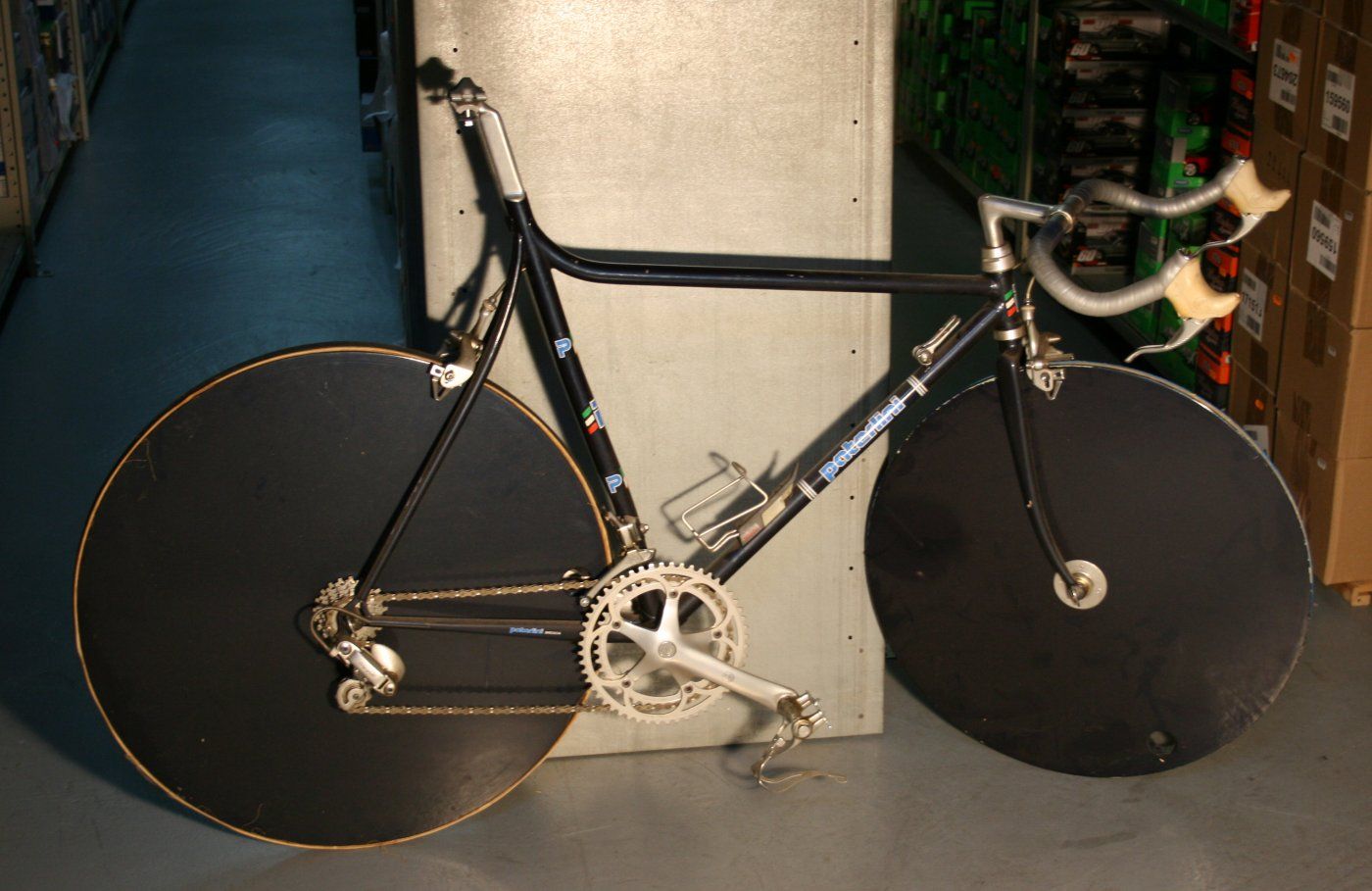

Crono(metro) strada

Zeitfahren / time trial road

by il vulcano di Brescia [(BS), Lombradia] Piero Serena
brazed over a coal-fired furnace (Holzkohlenglutbett), and kept always his procedure secret, and brazed/operated alone, locked himself up, was also kind a cellar / basement (similar to the beginnings of Rivola). Since he brazed over a coal forge no fame jig could be used, instead he pinned his frame tubes and lugs. puntatura & spine | Stiften & Stifte

Roberto Visenti rode always Serena s.
